Send InquiryPVC HDPE PP Pipe Casing Spacers
PVC HDPE PP Pipe Casing Spacers Specification
- Tensile Strength
- 30-38 MPa (varies by material)
- Yield Strength
- 22-28 MPa
- Sealing Type
- No sealing / Non-sealing
- Diameter
- 50 mm to 630 mm
- Connection Type
- Snap Fit / Clip On
- Tolerance
- 0.2 mm
- Temperature Range
- -10C to 60C
- Flexibility
- Semi-rigid
- Bend Radius
- Rigid structure, not bendable
- Product Type
- Casing Spacer
- Material
- HDPE
- Connection
- Interlocking Snap-fit
- Shape
- Other
- Standard
- ASTM / ISO / IS
- Surface Treatment
- Smooth / Uncoated
- Outer Diameter
- Custom as per pipe size 50 mm to 630 mm
- Section Shape
- Tubular / Circular
- Length
- Standard 150 mm / 250 mm / custom
- Thickness
- 3 mm to 8 mm
- Color
- Grey / Black / Custom
- Usage
- Support & centralizer for pipe casing
- Rated Pressure
- Upto 10 bar
- Application
- Pipe Casing in Water, Sewer, Power, Telecom & Utility Duct Installations
- Material Grade
- Virgin / High-Impact Grade
- Reusable
- Yes
- Installation
- Manual, Tool-free Assembly
- Load Distribution
- Uniform Pipe Support
- Chemical Resistance
- Excellent (Resistant to acids, alkalis, and common chemicals)
- UV Resistance
- High (on HDPE, PP variants)
- Fire Retardant
- Available on request
- Storage Life
- 5+ years
- Number of Legs
- 2 to 12 (depends on diameter)
- Packaging Type
- Bundled or boxed
- Distance Between Spacers
- Typically 1.5 m to 3 m

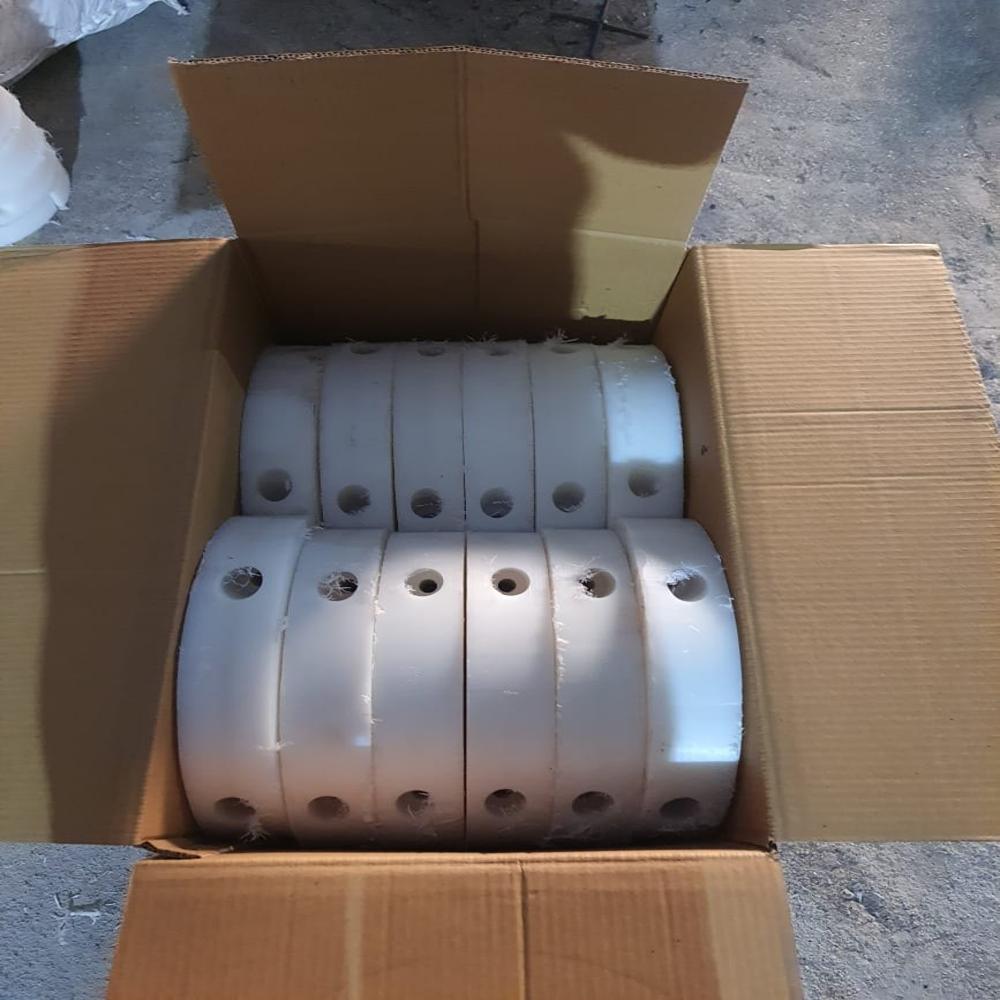

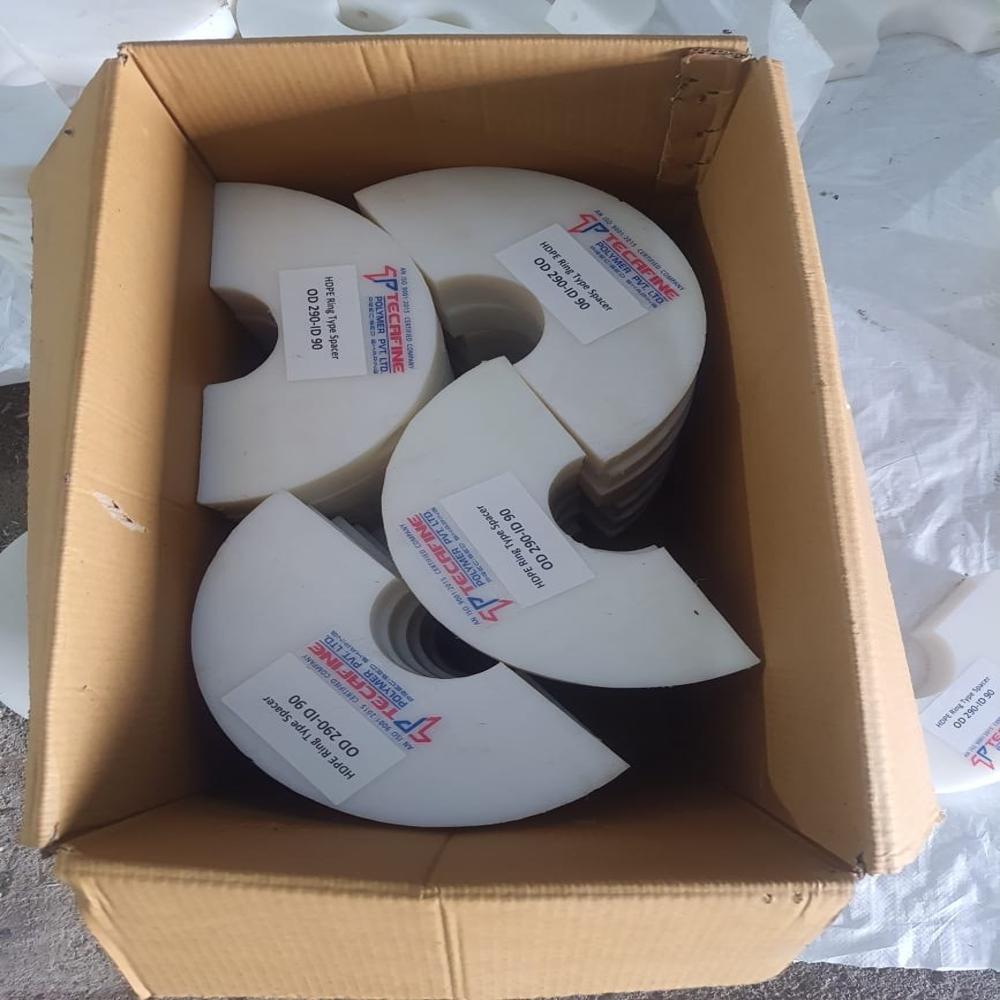

About PVC HDPE PP Pipe Casing Spacers
Although casing spacers play a small part in the installation process of a water or sewer carrier pipe, the part they play is an important one.
Also known as casing insulators, theyre able to improve a carrier pipes performance, reliability, and life-cycle. In addition, insulators ensure accurate alignment, provide support, and reduce pipe installation time.
Versatile and Durable Pipe Support
Crafted from top-grade virgin or high-impact HDPE and PP, these spacers withstand harsh environmental conditions. Designed for use across multiple sectors such as water, sewer, power, and telecom, they deliver excellent performance with minimal wear even after long-term storage, having a shelf life of over five years.
Effortless Installation with Secure Snap-Fit Design
These pipe casing spacers enable manual, tool-free installation. The interlocking, clip-on connection provides a robust fit, significantly reducing assembly time while ensuring that spacers remain firmly in place. The snap-fit feature also means the product can be reused and repurposed for future projects without losing integrity.
Adaptable to Varied Project Needs
Available in a range of diameters, lengths, and colors, the spacers are suitable for pipelines of 50 mm to 630 mm diameter. Whether your requirements involve custom shapes or standardized options, each spacer is manufactured to strict tolerances for precise fit and uniform pipe support.
FAQ's of PVC HDPE PP Pipe Casing Spacers:
Q: How are PVC HDPE PP Pipe Casing Spacers installed?
A: These spacers are installed manually without the need for special tools. Their snap-fit, interlocking design allows quick and secure assembly directly onto the pipe, simplifying installation and reducing labor costs.Q: What applications are these pipe casing spacers suitable for?
A: They are ideal for supporting and centralizing pipes in water, sewer, power, telecom, and utility duct installations. Their high chemical and UV resistance make them suitable for use in diverse, challenging environments.Q: Can these spacers be reused for future installations?
A: Yes, these spacers are fully reusable. Their robust material properties and snap-fit connection maintain integrity after multiple uses, making them economical and sustainable for repeated applications.Q: What is the recommended distance between successive spacers during installation?
A: The typical distance between spacers ranges from 1.5 meters to 3 meters, depending on pipe size and application requirements. Adhering to this guideline ensures effective load distribution and pipe support.Q: Are the spacers available in fire-retardant versions?
A: Yes, fire-retardant variants can be provided upon request, enhancing safety in environments where fire resistance is critical.Q: What benefits do these spacers offer regarding durability and environmental resistance?
A: Made from high-impact HDPE or PP, the spacers excel in UV and chemical resistance, tolerating acids, alkalis, and common chemicals. Their robust construction offers a service life exceeding five years when stored properly.Q: Is customization available for diameter, length, and color of the spacers?
A: Absolutely. The spacers can be tailored in diameter (50 mm to 630 mm), length, and color to fit specific project needs, ensuring precise fitment and aesthetic requirements are met.Tell us about your requirement
