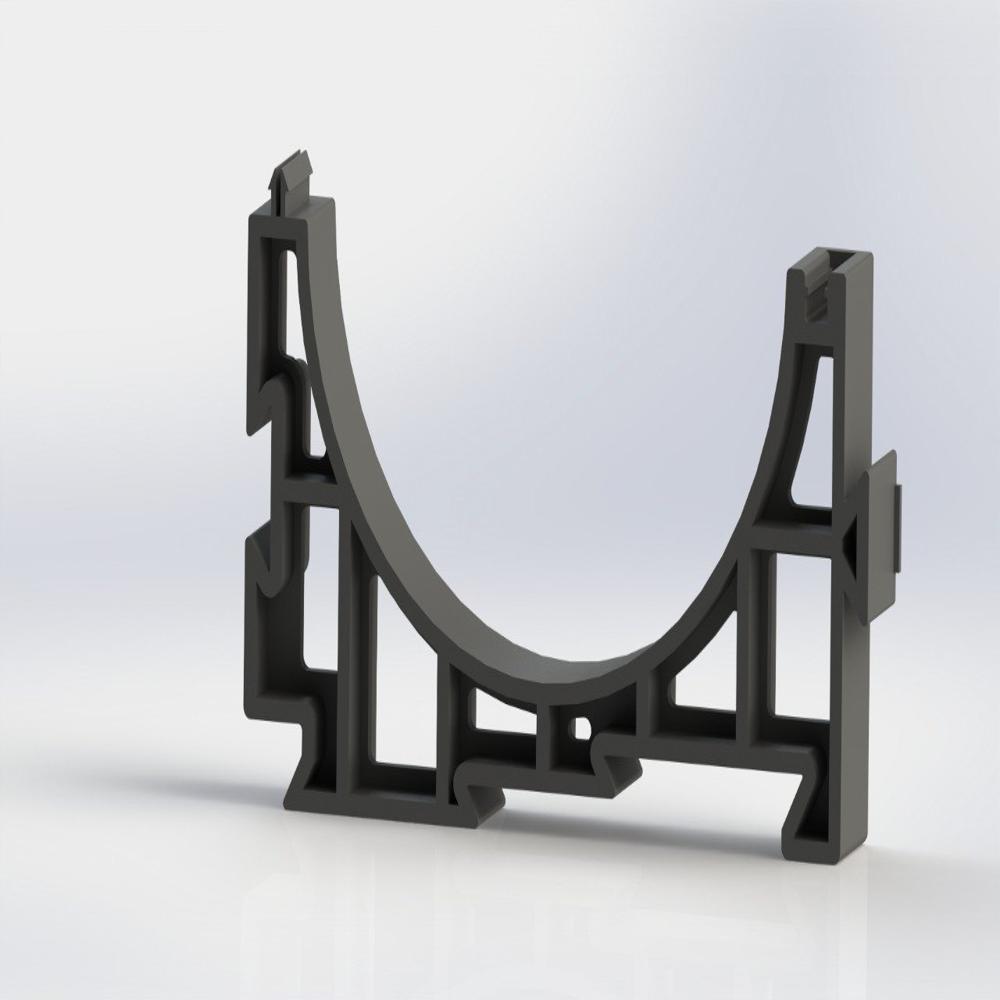

Send InquiryDouble Wall Corrugated Pipe Spacers
Price 12.0 INR/ Unit
MOQ : 100 Units
Double Wall Corrugated Pipe Spacers Specification
- Tolerance
- 2% overall dimensions
- Flexibility
- Rigid
- Bend Radius
- N/A (rigid spacer)
- Yield Strength
- 19 MPa (approx., HDPE)
- Sealing Type
- Open grid (non-sealing spacer)
- Tensile Strength
- Minimum 22 MPa (as per HDPE properties)
- Temperature Range
- -10C to +60C
- Connection Type
- Snap-on/clip-fit
- Diameter
- Pipe compatibility: 63 mm, 90 mm, 110 mm, 160 mm, 200 mm, 250 mm, 315 mm
- Product Type
- Double Wall Corrugated Pipe Spacer
- Material
- HDPE
- Connection
- Snap-fit interlocking
- Shape
- Other
- Standard
- IS 14930 / IS 4984 or equivalent
- Surface Treatment
- Uncoated (as-moulded finish)
- Outer Diameter
- Designed to fit 63 mm to 315 mm pipe outer diameter
- Section Shape
- Corrugated grid
- Length
- Standard 200 mm, customizable
- Thickness
- 6-10 mm (approx.)
- Color
- Black
- Usage

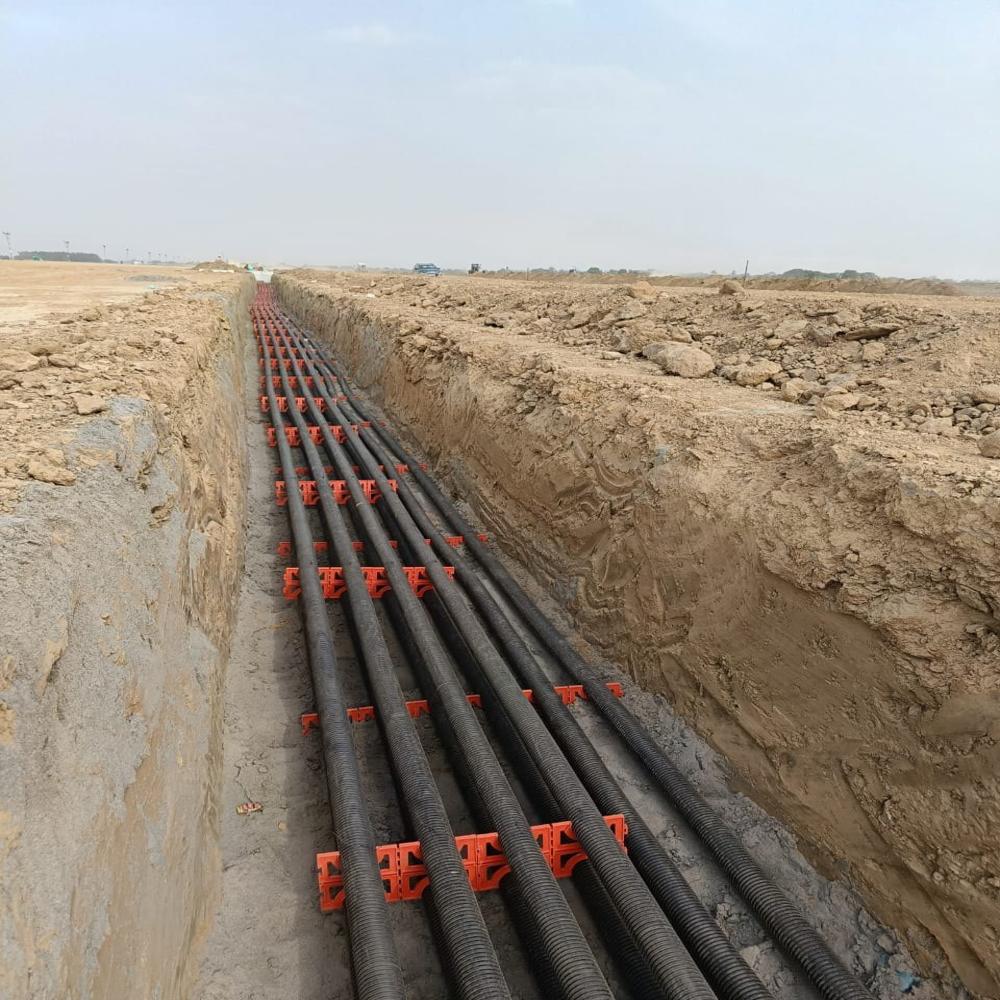

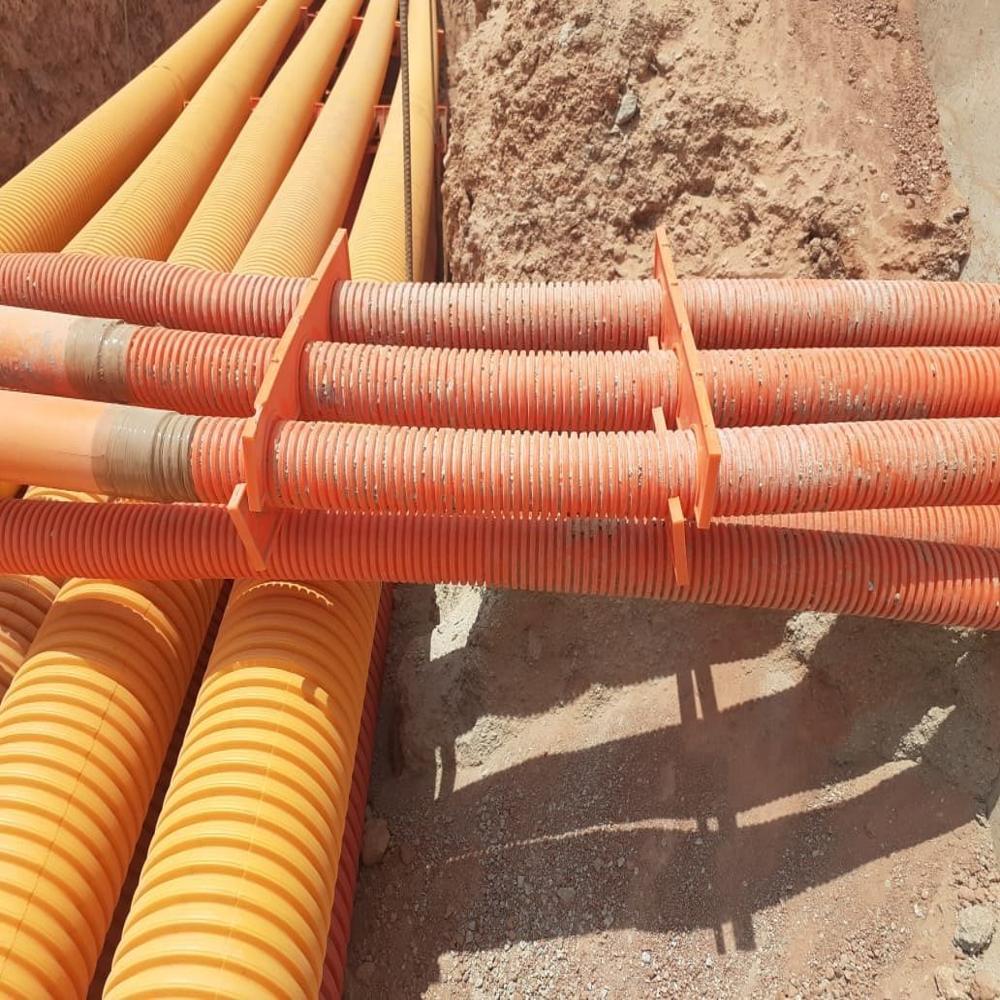

- To maintain pipe spacing in duct banks/cable conduits
- Rated Pressure
- N/A (spacer only; depends on pipe rating)
- Application
- Underground electrical and communication cable installation
- Material Grade
- PE100
- UV Resistance
- High, suitable for temporary outdoor exposure
- Impact Resistance
- High, suitable for rough handling during installation
- Spacing Height
- Varies by model, typically 60 mm or 90 mm
- Packaging
- Bundled in plastic wraps or cartons
- Fire Resistance
- Self-extinguishing as per IS standard
- Installation Method
- Manual insertion and interlocking
- Shelf Life
- 5+ years under recommended storage conditions
- Weight Per Spacer
- 0.15 - 0.55 kg (varies with pipe size)
- Number of Pipes Supported
- Up to 4 per spacer layer
- Electrical Insulation
- Good, non-conductive HDPE material
- Reusability
- Reusable for multiple installations
- Compliance
- ROHS compliant
- Chemical Resistance
- Excellent resistance to most acids and alkalis
About Double Wall Corrugated Pipe Spacers
Duct Spacers shall be made from ABS Acrylonitrile Butadiene Styrene (ABS). (1.04 specific gravity
has been chosen by TECAFINE for the manufacture of all interlocking module spacers
because of its flexibility, strength, and resiliency.
(A) Under compressive stress
(B) The spacer modules can be freely handled on the job site without breakage.
Since many utilities install underground systems year-round, and most large projects carry through more than one year, it is important to use a formulaon of ABS for spacers that will not be adversely by the extremes of summer or winter temperares. Finally, Rib wall construction makes it possible to design a spacer which will hold safely the vertical
loads normally encountered when men work atop large duct banks.

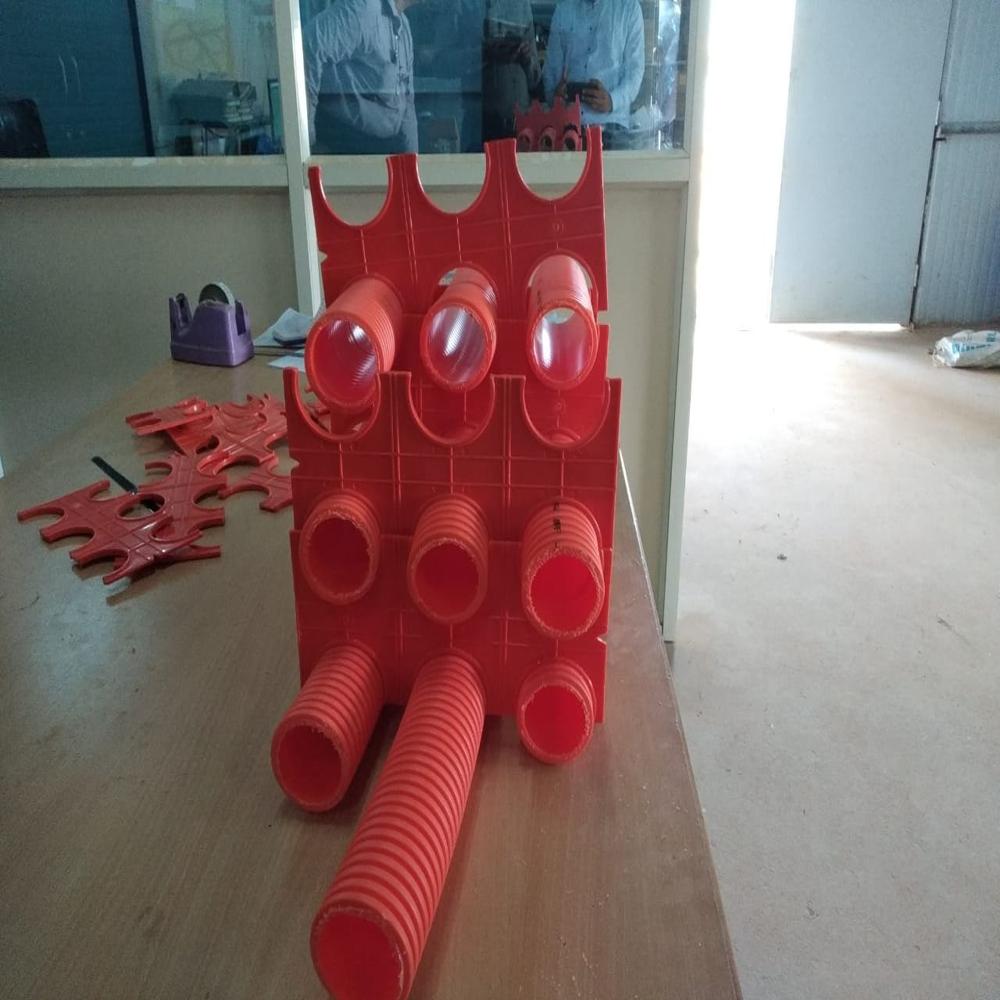

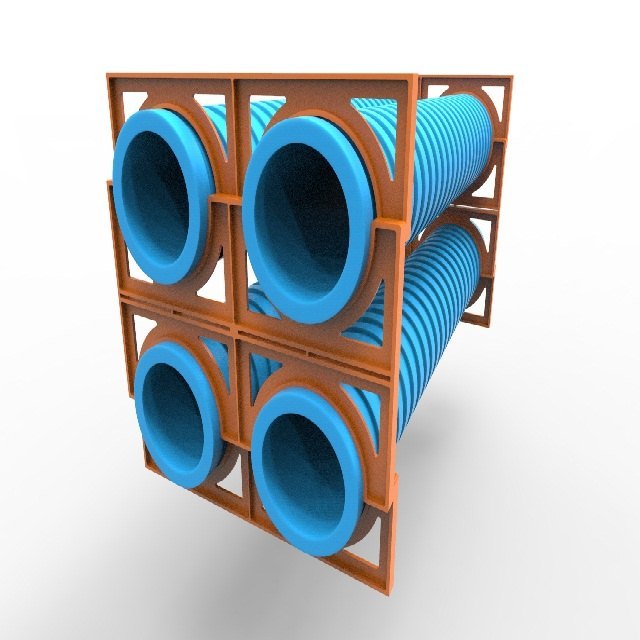

Spacers shall consist of interlocking modules. The interlocking modules shall include an
internal vertical channel on both side edges of the spacers. When the duct bank is
assembled.
High Impact and Chemical Resistance
Built from top-grade HDPE, our Double Wall Corrugated Pipe Spacers withstand rough handling during installation and resist most acids and alkalis. Their rugged construction makes them suitable for challenging conditions, providing longevity and reliability in demanding applications such as underground duct banks.
Flexible Pipe Compatibility
With support for pipe diameters from 63 mm up to 315 mm, our spacers accommodate a wide range of electrical and communication conduits. They feature a corrugated grid section shape and are available in various spacing heights and thicknesses to meet diverse project requirements.
Effortless Installation and Reusability
Designed with a manual snap-fit interlocking method, installation is straightforward and quick, requiring no special tools. The spacers are reusable across multiple installations, making them an economical and sustainable choice for contractors and utility providers.
FAQ's of Double Wall Corrugated Pipe Spacers:

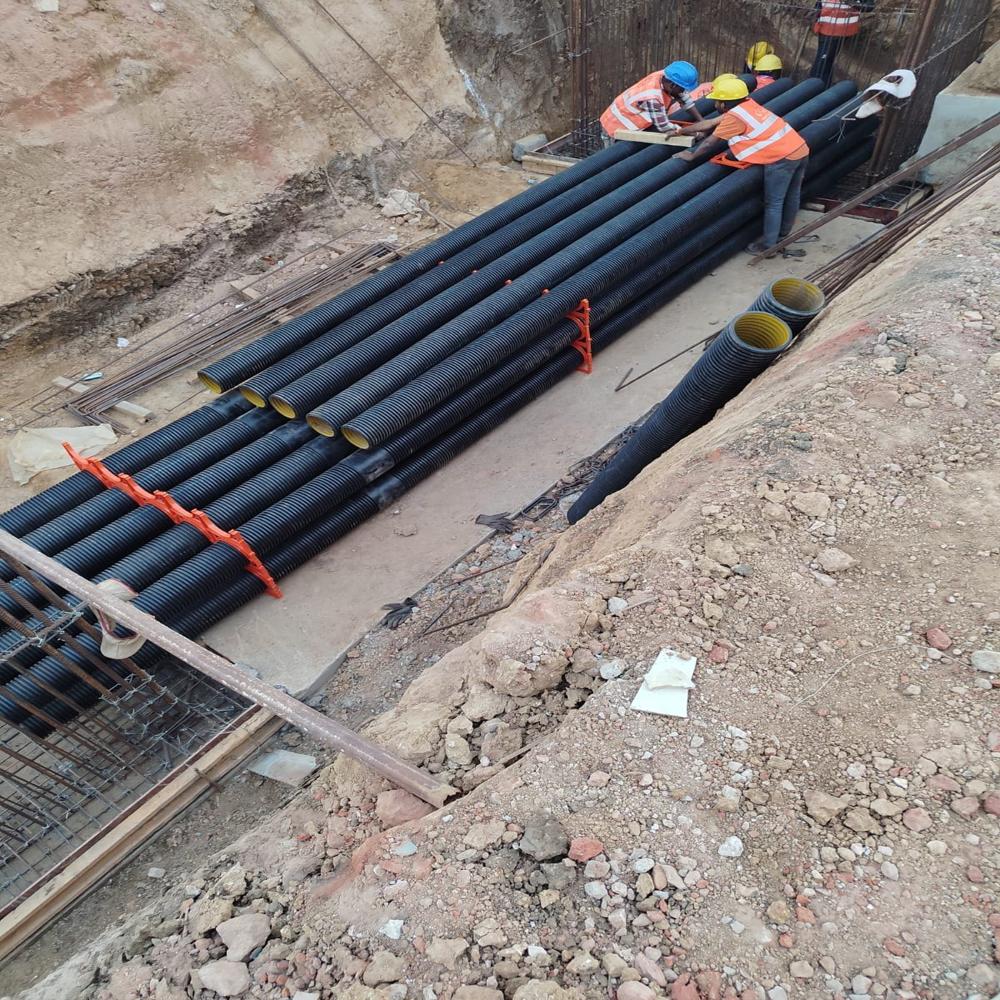

Q: How are Double Wall Corrugated Pipe Spacers installed during cable conduit projects?
A: These spacers are installed manually by snapping and interlocking them around the pipes within cable trenches or duct banks. No specialized tools are required, and the process helps maintain precise spacing between up to four pipes per spacer layer.Q: What benefits do these spacers offer for outdoor or underground installations?
A: Designed with high UV and chemical resistance, the spacers perform reliably in outdoor or underground settings. Their robust impact resistance protects pipes during rough handling, and their non-conductive HDPE provides excellent electrical insulation.Q: When should I consider using these pipe spacers in my project?
A: Use these spacers when installing underground electrical or communication cables that require consistent spacing for structural integrity, safety, and ease of future maintenance, especially where pipes range between 63 mm and 315 mm in diameter.Q: Where are these pipe spacers typically supplied and used?
A: Primarily supplied across India, these spacers are widely used by contractors and utility companies in the construction of underground duct banks and cable conduits for electrical and telecommunication infrastructure projects.Q: What makes the installation process of these spacers efficient?
A: Their lightweight design (0.15-0.55 kg), open grid structure, and snap-fit connection enable quick manual installation and easy alignment of pipes. They are also conveniently bundled in plastic wraps or cartons for streamlined handling onsite.Q: Are these spacers reusable and long-lasting?
A: Yes, the spacers are engineered for repeated use across multiple installations and have a shelf life exceeding five years under recommended storage and handling conditions.
