Drill Pipe Stacking

Drill Pipe Stacking Specification

Sealing Type
Metal to Metal Seal

Tensile Strength
Up to 135,000 psi

Yield Strength
95,000 psi minimum

Temperature Range
-40C to +200C

Diameter
127 mm

Tolerance
0.5 mm

Flexibility
Rigid

Coating Type
Phosphate / Zinc Plating

Bend Radius
Fixed as per pipe specification

Connection Type
NC Tool Joint Connection

Thread Type
API Regular / NC Threads

Product Type
Drill Pipe Stacking

Material
Alloy Steel

Connection
Tool Joint

Shape
Cylindrical

Standard
API 5DP

Surface Treatment
Anti-corrosive Coated

Outer Diameter
127 mm (5 inches standard)

Section Shape
Round

Length
9.5 m (31 ft) standard joint

Thickness
9.35 mm (typical)

Color
Black

Usage
Oil & Gas Drilling Operations

Rated Pressure
Up to 30,000 psi

Material Grade
E-75 / X-95 / G-105 / S-135 (as per requirement)

Application
Drilling Rig Pipe Handling and Storage

Weight per Meter
20.7 kg/m approx.

Stack Height
Custom, as per site requirements

Stack Capacity
Up to 40 pipes per stack

Rust Protection
External Coating & End Caps

Stacking Method
Horizontal, Tiered Palletized

Pipe Ends
Threaded & Coupled

End Finish
Beveled

Hardbanding
Optional, on Tool Joints

Packing
Bundled with Steel Straps

Transport Condition
Suitable for Sea and Land Transportation

About Drill Pipe Stacking

Tecafine PP Runner are injection moulded from high grade recycled polypropylene. Tecafine PP Runner are long lasting and re-useable. Tecafine PP Runner are UV resistant over a wide temperature range. The material does not crack or degrade under influence of sun light and is unaffected by moisture, oil or solvents. Tecafine PP Runner have a proven track record of over 10 years of safe operation.

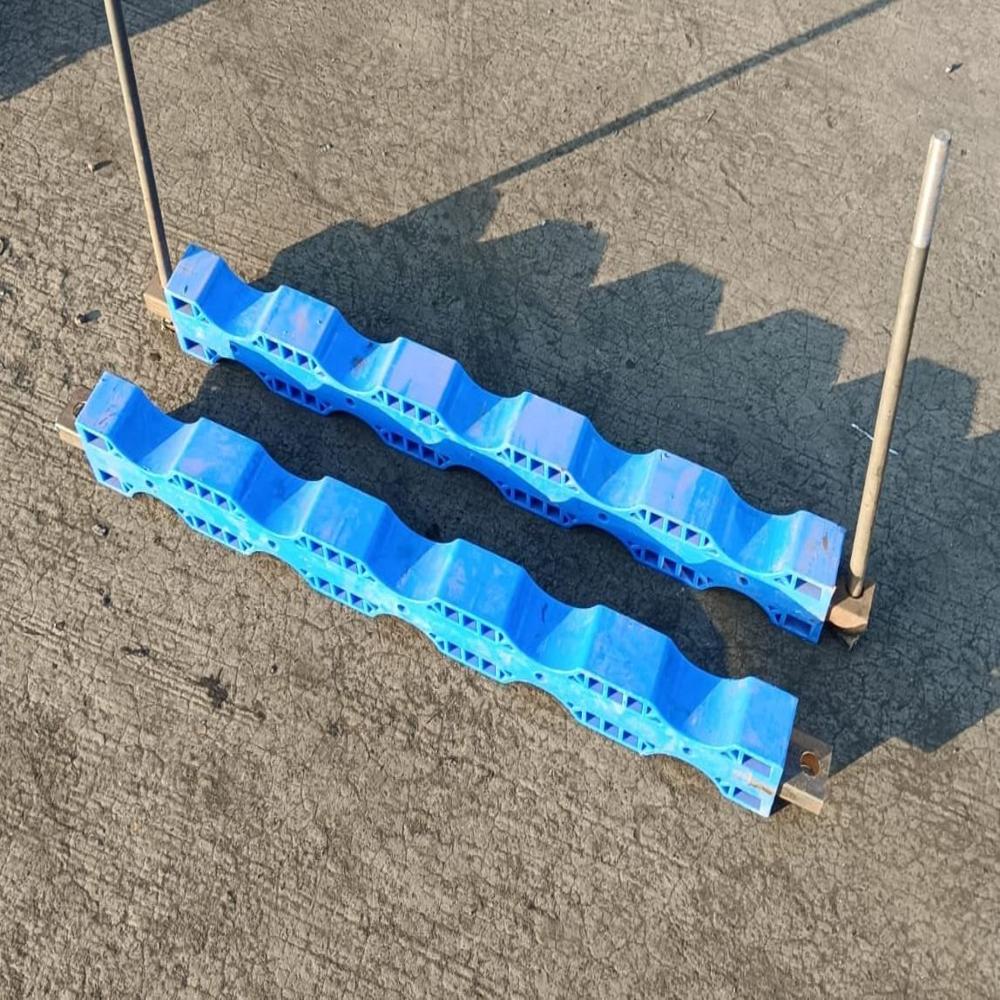

Tecafine PP Runner is an engineered system consisting of base carriers and mid carriers with defined, tested and field proven Safe Working Loads. The base carriers are placed on a flat surface and the mid carriers are placed in between the layers.

PP Runner installation Drill Pipe is a rugged, It is the most effective and economical mechanical Pipe Storage System.

Usually while tripping pipe. A stand of collar are similar, the collar to allow it to be picked up by the elevators. They are usually kept between Two Pipe.

Tecafine PP Runner are generally sized by how many stands they can hold in their Pipe.

Reliable Stacking Methods for Drill Pipe Safety

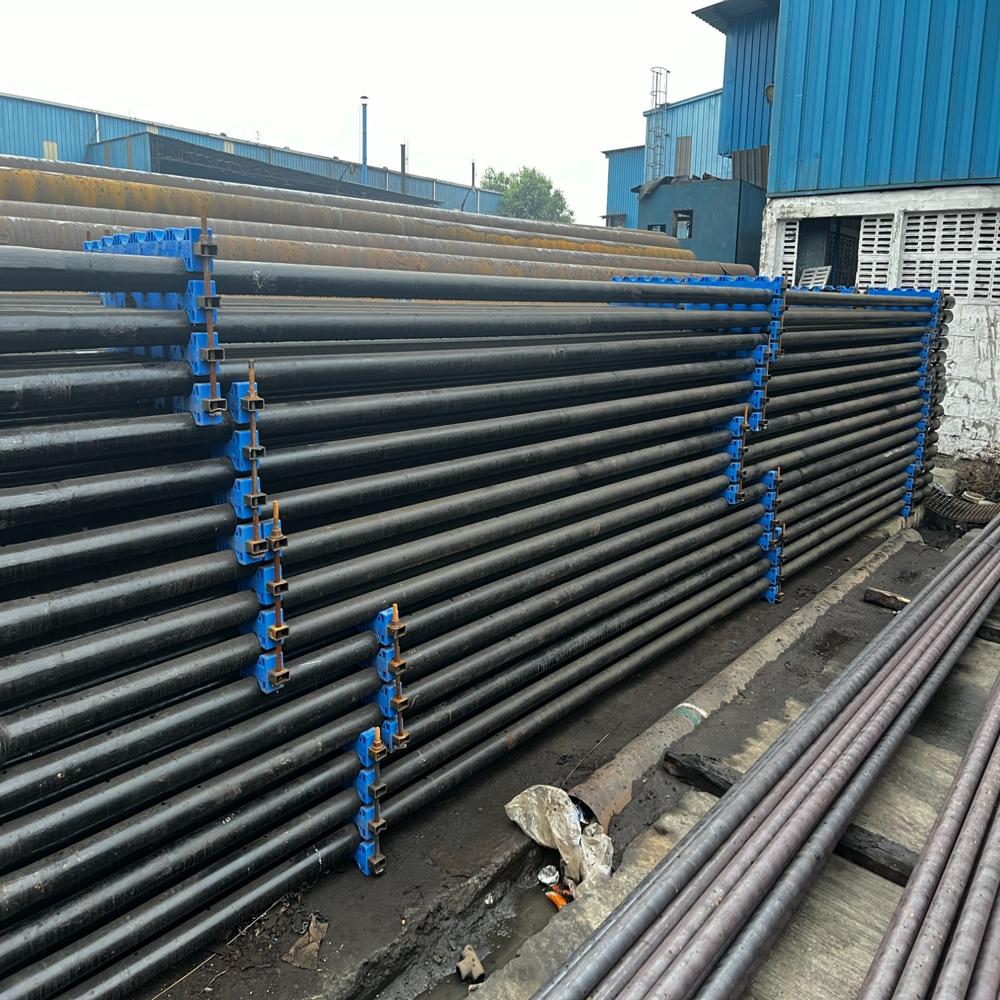

Our drill pipes are stacked horizontally in a tiered, palletized system to provide maximum stability during storage and transport. Each stack can include up to 40 pipes, tailored to your site's spatial and operational requirements. Pipes are securely bundled with steel straps, ensuring safe handling and reducing the risk of movement or damage.

Durable Protection for Shipping and Storage

To withstand harsh environmental conditions and long transport routes, each pipe features anti-corrosive coatings, external end caps, and careful bundling to prevent rust and mechanical damage. Our preparation process ensures the pipes maintain integrity, whether shipped by sea or land.

Engineered to API 5DP Standards

Our drill pipes conform to global API 5DP specifications for oil and gas operations. The pipes are made from high-strength alloy steel and available in grades E-75, X-95, G-105, and S-135, matching different rig demands. Quality assurance covers tensile strength, sealing, and pressure rating, making our pipes suitable for high-stress drilling environments.

FAQ's of Drill Pipe Stacking:

Q: How are the drill pipes stacked and secured for transport and storage?

A: The drill pipes are horizontally stacked in a tiered, palletized arrangement, allowing up to 40 pipes per stack. Each bundle is secured with steel straps to prevent shifting or movement, providing a stable and safe configuration for both storage and transportation.

Q: What protective measures are taken to prevent rust and damage?

A: Each pipe receives an anti-corrosive coating along with external end caps to protect both the body and thread ends from rust and environmental exposure. The pipes are then tightly bundled with steel straps, further reducing the risk of mechanical damage during handling and shipping.

Q: When should hardbanding be applied to the drill pipe tool joints?

A: Hardbanding on tool joints is optional and can be applied based on site-specific wear requirements. It is recommended when drilling in abrasive conditions to increase the lifespan of the tool joints and minimize wear during operation.

Q: Where are these drill pipes suitable for use and transportation?

A: These pipes meet API 5DP standards, making them suitable for oil and gas drilling operations in diverse environments. They are prepared for safe sea and land transport, ensuring integrity from manufacturing site to drilling rig, whether local or international.

Q: What are the main benefits of using the provided stacking and packing methods?

A: The horizontal, tiered palletized stacking method ensures optimal space utilization, easy handling, and improved safety. Steel strap bundling enhances transport security, reducing pipe movement, and the external coatings and end caps provide long-term rust resistance.

Q: How does the material and design specification contribute to pipe performance?

A: Manufactured from high-grade alloy steel and offered in multiple API 5DP-compliant grades, these pipes deliver excellent tensile and yield strength, high pressure resistance, and reliable metal-to-metal seals-ensuring outstanding performance during demanding drilling tasks.
