Send InquiryRoller Pipe Casing Spacer
Roller Pipe Casing Spacer Specification
- Coating Type
- N/A (Supplied as Self-finished Polymer Component)
- Diameter
- 75 mm - 600 mm
- Thread Type
- N/A (Non-threaded Connection)
- Yield Strength
- > 25 MPa
- Flexibility
- Semi-rigid
- Sealing Type
- Non-sealing Type
- Connection Type
- Snap-fit or Bolt-on
- Temperature Range
- -40C to +80C
- Tensile Strength
- > 35 MPa (for Nylon/Polymer)
- Tolerance
- 2 mm
- Product Type
- Roller Pipe Casing Spacer
- Material
- Polymer/HDPE, Polypropylene, or Nylon (varies by model)
- Connection
- Interlocking or Clip-on
- Shape
- Cylindrical Spacer with Rollers
- Standard
- ASTM or as per project specification
- Surface Treatment
- Rust and Corrosion Resistant
- Outer Diameter
- Up to 600 mm (customization available)
- Section Shape
- Circular
- Length
- 125 mm - 600 mm
- Thickness
- 3 mm - 8 mm (varies by model)
- Color
- Black or Grey
- Usage
- Pipe Positioning, Centralization, Casing in Boring/HDD/Crossing Applications
- Rated Pressure
- Up to 24 bar (varies with application)
- Material Grade
- UV Stabilized Engineering Plastic
- Application
- Pipeline Casing, Duct Spacing, Horizontal Directional Drilling (HDD)
- Chemical Resistance
- Resistant to Acids, Alkalis, and Common Industrial Solvents
- Lead Time
- 2 - 4 weeks
- Roller Material
- High-Density Polymer or Galvanized Steel
- Compliance
- Meets major Oil, Gas, and Water Pipeline requirements
- Spacer Height
- 50 mm - 300 mm
- Fire Retardancy
- Available on Demand
- Packaging Type
- Carton Box or Bulk Sack
- Service Life
- Up to 50 years under standard conditions
- Roller Quantity per Spacer
- 4 - 8 Rollers (Depending on Pipe Size)
- Installation Method
- Manual Clip-On or Tool Assisted
- UV Resistance
- Yes
- Roller Diameter
- 40 mm - 80 mm
- Spacer Weight
- 0.45 kg - 2.8 kg (depending on size/model)
About Roller Pipe Casing Spacer
Roller Spacer made from HDPE and PP with flexural
strength High temperate resistance and outstanding
chemical resistance. Insert friction is reduced with rollers,
allowing the pipe to be moved freely during installation,
Nylon nut bolt fix the spacer firmly to the pipe. And Roller are
made from PP material. Although casing spacers play a
small part in the installation process of a water or sewer
carrier pipe the part they play is an important one.
Also known as casing insulators, theyre able to improve a
carrier pipes performance reliability and life-cycle. In
addon, insulators ensure accurate alignment, provide
support and reduce pipe installation time.
Tecafine also provides various skid heights as per customer
requirement and standard size of 55mm-110mm-165mm.
Engineered for Precision and Durability
These casing spacers are constructed from high-grade polymers or galvanized steel, offering enhanced UV and chemical resistance. Their robust design ensures optimal pipe alignment and minimal friction during installation, making them ideal for extensive horizontal directional drilling and casing applications in harsh environments.
Customizable for Varied Applications
Available in several models, these spacers support wide pipe diameters (75 mm - 600 mm) and come with roller heights between 50 mm and 300 mm. Customization is available to fit diverse project requirements, allowing perfect compatibility with your pipeline specifications.
Effortless, Reliable Installation
The installation is quick and efficient-simply clip on or use a suitable tool for larger models. The interlocking, snap-fit system guarantees secure placement without specialized tools. Each unit is packaged in carton boxes or bulk sacks for convenient transport and storage.
FAQ's of Roller Pipe Casing Spacer:
Q: How do I install the Roller Pipe Casing Spacer?
A: The spacer is designed for manual clip-on installation or can be tool assisted for larger sizes. Its interlocking or snap-fit connection enables quick and secure mounting during pipeline assembly.Q: What are the benefits of using high-density polymer or galvanized steel for the rollers?
A: High-density polymer offers excellent chemical and UV resistance, minimizing maintenance and preventing corrosion, while galvanized steel provides superior mechanical strength for heavy-duty applications.Q: When should I use a fire-retardant version of the spacer?
A: Fire-retardant variants are recommended for projects where fire safety regulations apply, or in environments with a higher risk of exposure to high temperatures. This option is available on demand.Q: Where can these spacers be applied?
A: They are ideally used in oil, gas, and water pipeline projects, particularly for casing, duct centralization, horizontal directional drilling (HDD), and crossing applications.Q: What is the typical process for sizing and selecting the correct spacer?
A: Select based on your pipe diameter (75 mm - 600 mm), spacer height, and specific project requirements. Customization is available for out-of-standard sizes to ensure optimal performance.Q: How does the UV and chemical resistance benefit long-term performance?
A: UV stabilization and resistance to acids, alkalis, and solvents protect the spacer from environmental deterioration, ensuring a service life of up to 50 years under standard conditions.Q: What packaging and lead time options are available?
A: Spacers are packed in either carton boxes or bulk sacks, depending on order size, and the typical lead time for delivery is 2 - 4 weeks.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Pipe Spacer Category

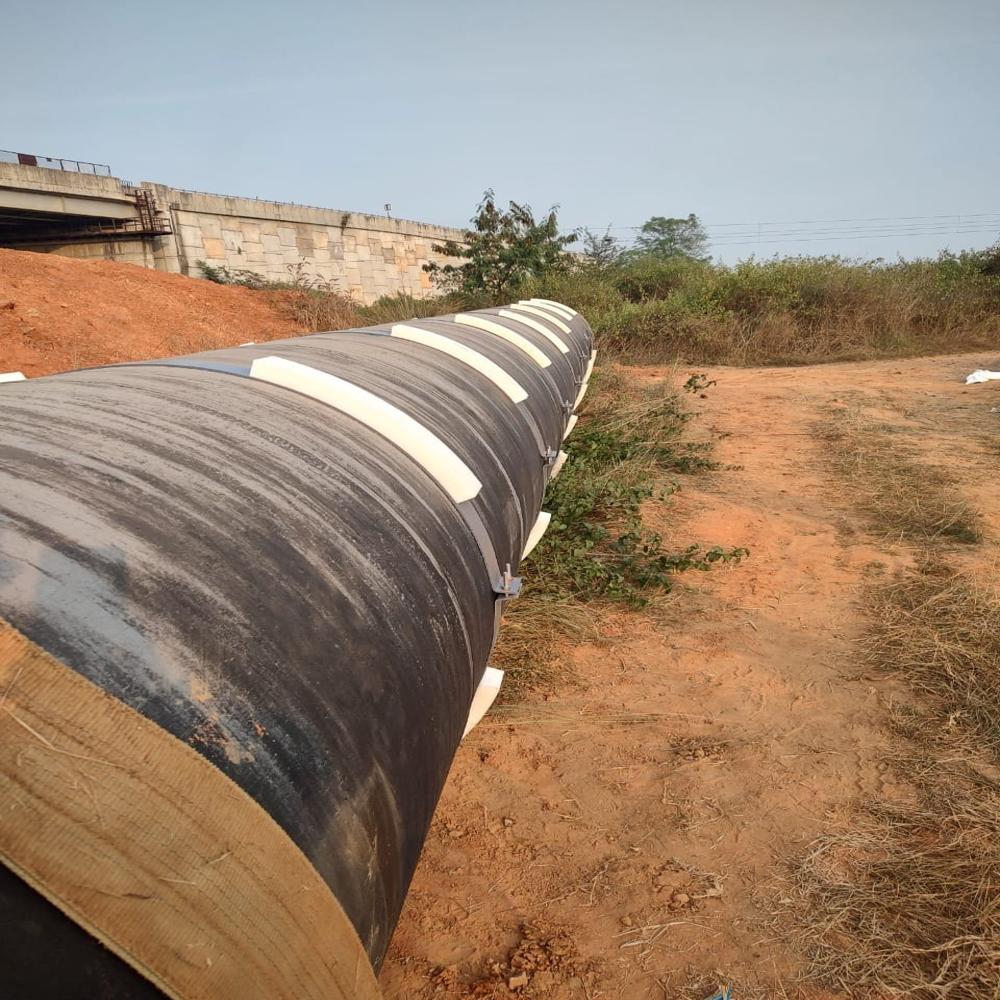

HDPE Casing Spacer
Price 7820.0 INR / Piece
Minimum Order Quantity : 10 Pieces
Material : HDPE
Shape : Other
Section Shape : Other, Circular
Connection : Other, Interlocking Snap Fit

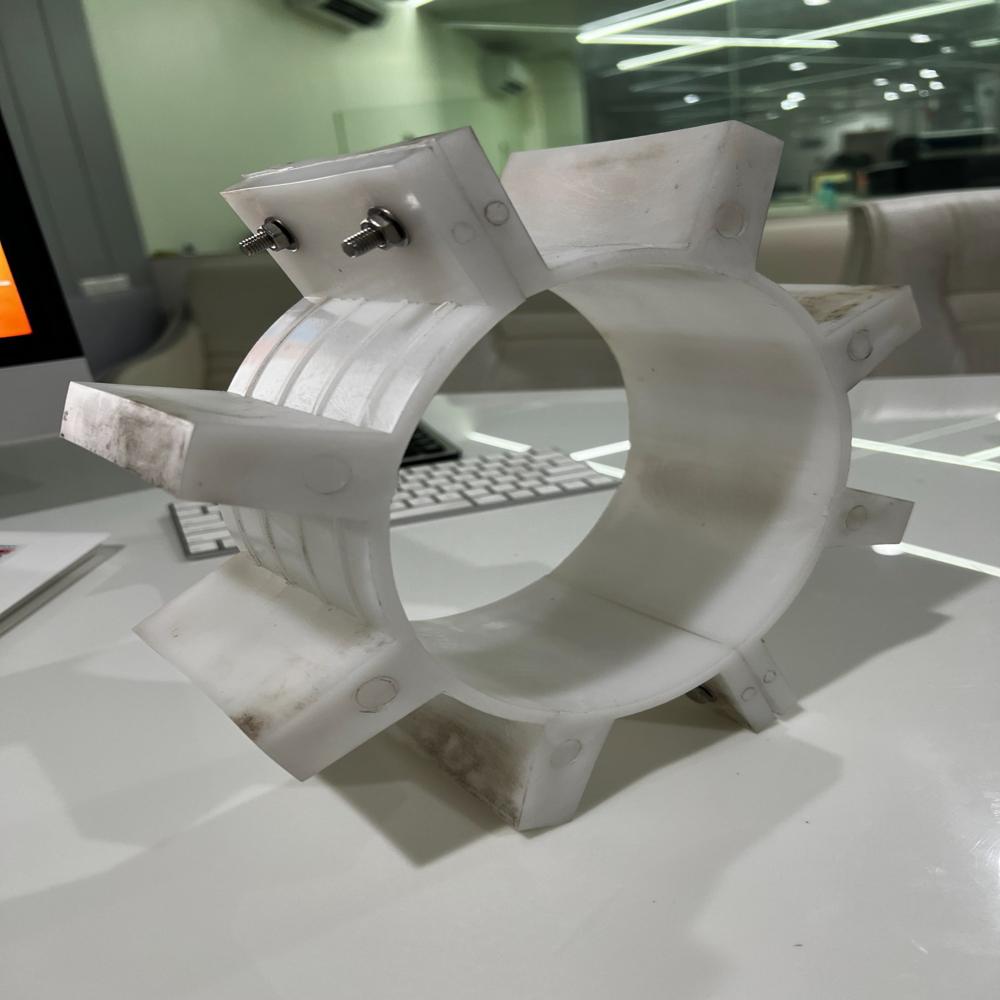

White Pipe Spacer
Price 165.0 INR / Unit
Minimum Order Quantity : 100 Units
Material : HDPE, Other
Shape : Other
Section Shape : Round
Connection : Other, Slip Fit

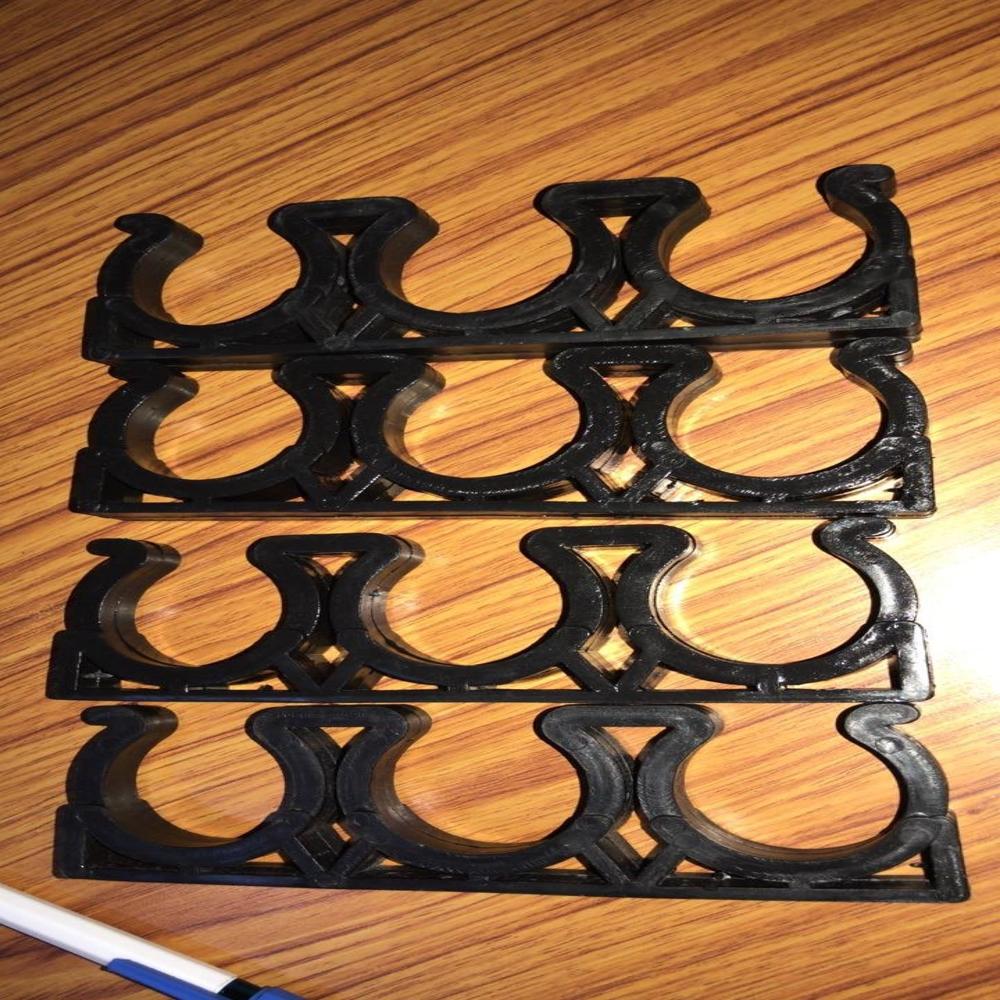

Fabricated Duct Spacers
Price 3400.0 INR / Unit
Minimum Order Quantity : 500 Units
Material : HDPE
Shape : Other
Section Shape : Other, Channel/Serrated
Connection : Other, Spot Welded/Mechanical Joint

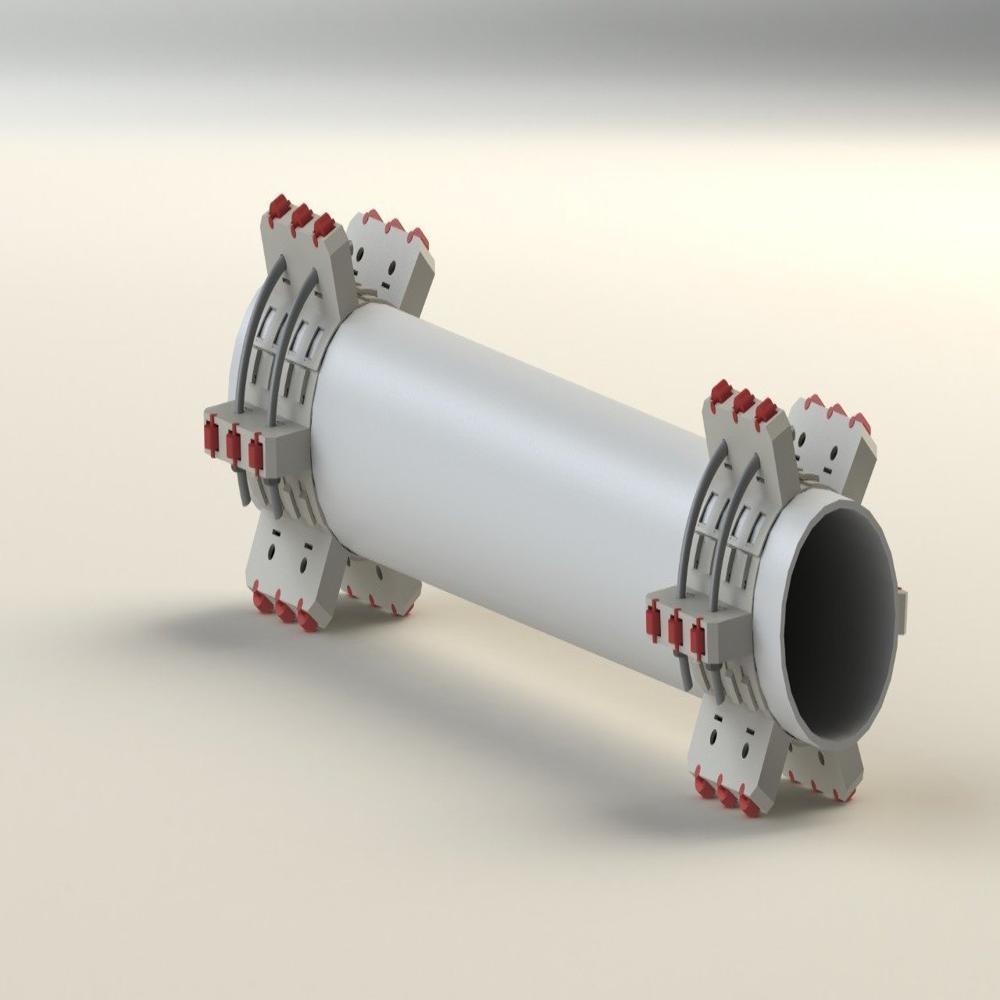

HDPE Pipe Spacer
