Send InquiryRoller Casing Spacer
Roller Casing Spacer Specification
- Tensile Strength
- 22 MPa
- Bend Radius
- Fixed
- Diameter
- 110 mm
- Flexibility
- Rigid
- Tolerance
- 1 mm
- Temperature Range
- -20C to +60C
- Yield Strength
- 19 MPa
- Connection Type
- Non-threaded, Friction Fit
- Product Type
- Roller Casing Spacer
- Material
- HDPE
- Connection
- Snap-On/Press-Fit
- Shape
- Other
- Standard
- ASTM F1216
- Surface Treatment
- Smooth Surface Finish
- Outer Diameter
- 110 mm
- Section Shape
- Circular
- Length
- 315 mm
- Thickness
- 8 mm
- Color
- Black
- Usage
- Centralizing and supporting casing pipes
- Rated Pressure
- Up to 10 Bar
- Application
- Oil & Gas Pipeline Installation, Water Well Casing, Boreholes
- Material Grade
- HDPE PE100
- Number of Rollers
- 4
- Corrosion Resistance
- Excellent
- Maximum Pipe Diameter
- 180 mm
- Installation Method
- Manual, Tool-free
- Minimum Pipe Diameter
- 110 mm
- Maintenance
- Maintenance-Free
- Suitability
- Suitable for underground and submersible casing applications
- Weight
- 0.74 kg (approx.)
- Environmental Resistance
- UV-resistant, chemical-resistant
- Compression Strength
- 3500 N
- Roller Material
- Nylon or HDPE (as per order specification)
- Service Life
- Up to 25 years
About Roller Casing Spacer
Roller Spacer made from HDPE and PP with flexural
strength High temperate resistance and outstanding
chemical resistance. Insert friction is reduced with rollers,
allowing the pipe to be moved freely during installation,
Nylon nut bolt fix the spacer firmly to the pipe. And Roller are
made from PP material. Although casing spacers play a
small part in the installation process of a water or sewer
carrier pipe the part they play is an important one.
Also known as casing insulators, theyre able to improve a
carrier pipes performance reliability and life-cycle. In
addon, insulators ensure accurate alignment, provide
support and reduce pipe installation time.
Tecafine also provides various skid heights as per customer
requirement and standard size of 55mm-110mm-165mm.
Superior Durability & Corrosion Resistance
Manufactured from high-grade HDPE PE100 or Nylon as per specification, this casing spacer offers exceptional resistance to corrosion, chemicals, and UV exposure. The robust design, 8 mm thickness, and smooth surface ensure longevity and reliable performance even in harsh underground environments, delivering up to 25 years of maintenance-free service.
Effortless Manual Installation
Designed for hassle-free field assembly, the snap-on/press-fit connection mechanism supports quick, tool-free installation. The lightweight build (approx. 0.74 kg) and friction-fit ensure secure placement and precise centralization, minimizing installation time in oil & gas pipelines, water wells, or boreholes.
Adaptable for Multiple Applications
Ideal for a range of pipe sizes (110 mm to 180 mm), this roller casing spacer is suitable for oil & gas, irrigation, and borehole installations. Its rigid structure, high compression strength (3500 N), and ASTM F1216 standard compliance guarantee reliable support and smooth movement for casing pipes in various challenging environments.
FAQ's of Roller Casing Spacer:
Q: How is the Roller Casing Spacer installed without tools?
A: The Roller Casing Spacer is designed with a snap-on or press-fit connection, enabling simple manual installation. Users only need to position the spacer around the pipe and press the sections together-no additional hardware or tools are required. This ensures quick, efficient installation, even in confined underground environments.Q: What are the benefits of using a roller casing spacer made from HDPE or nylon?
A: HDPE and nylon provide excellent corrosion resistance, chemical stability, and UV protection. These materials contribute to a longer service life (up to 25 years), minimal maintenance requirements, and high durability under varying pressures and temperatures, making them optimal for underground and submersible applications.Q: Where can this casing spacer be effectively used?
A: The spacer is suitable for underground pipeline installation, water well casing, borehole stabilization, and oil & gas pipelines. Its smooth finish and robust construction ensure reliable performance in corrosive, chemical-laden, or moisture-rich environments.Q: What is the process for centralizing and supporting casing pipes with this spacer?
A: To centralize the casing pipe, simply install the roller spacer at designated intervals along the pipe's length. The rollers reduce friction and keep the pipe centered within a borehole or casing, protecting against abrasion and enhancing flow efficiency.Q: When is it necessary to use a roller casing spacer in pipeline projects?
A: Roller casing spacers are essential whenever centralization of the casing inside a borehole is required, particularly in oil & gas pipeline installations, water wells, and submersible casing projects. They provide consistent support and prevent pipe misalignment and abrasion during or after installation.Q: How does the spacer ensure maintenance-free operation?
A: Made from durable, wear-resistant materials with a smooth surface finish and rigid construction, the spacer resists environmental degradation and mechanical wear. This eliminates the need for periodic servicing, ensuring uninterrupted operation over its long lifespan.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Pipe Spacer Category

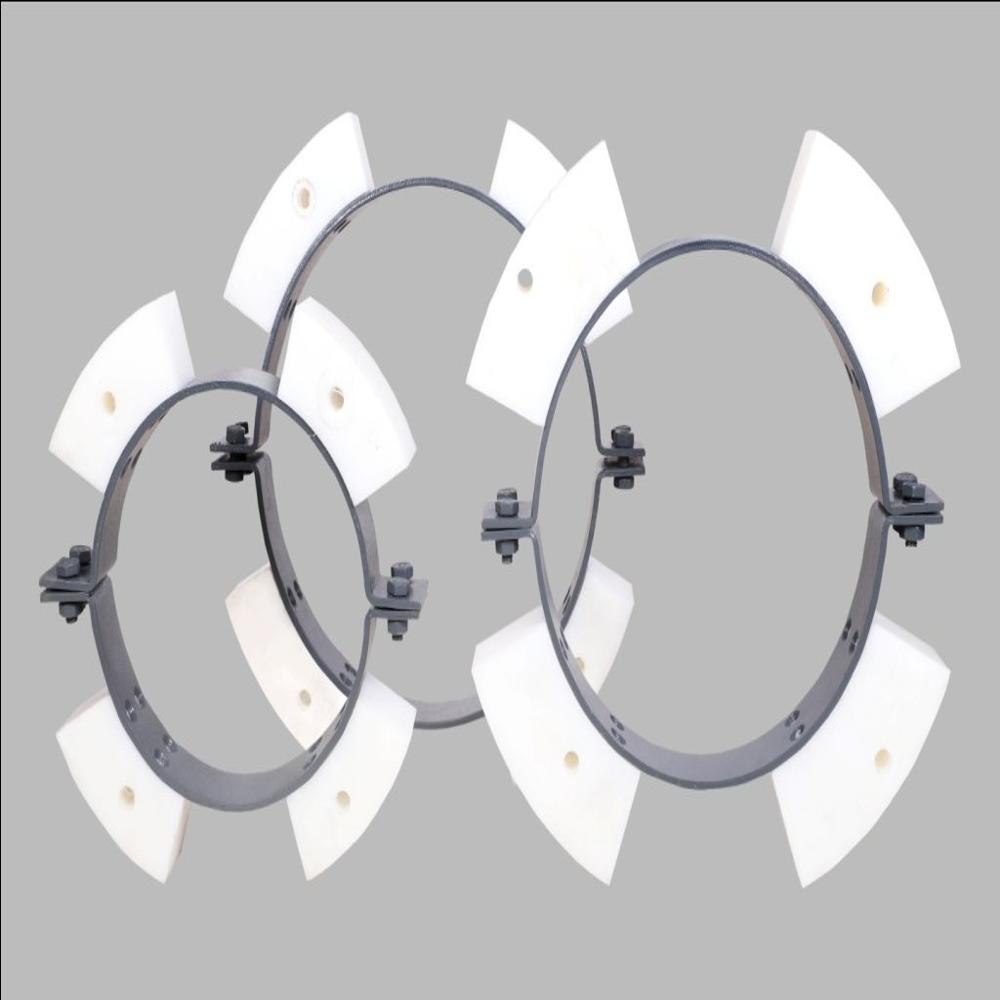

RCC Casing Spacer
Price 1560.0 INR / Piece
Minimum Order Quantity : 20 Pieces
Application : other, Underground Utility, Casing Pipe Installation
Flexibility : Rigid
Thickness : 25 mm to 50 mm (typical)
Color : Grey

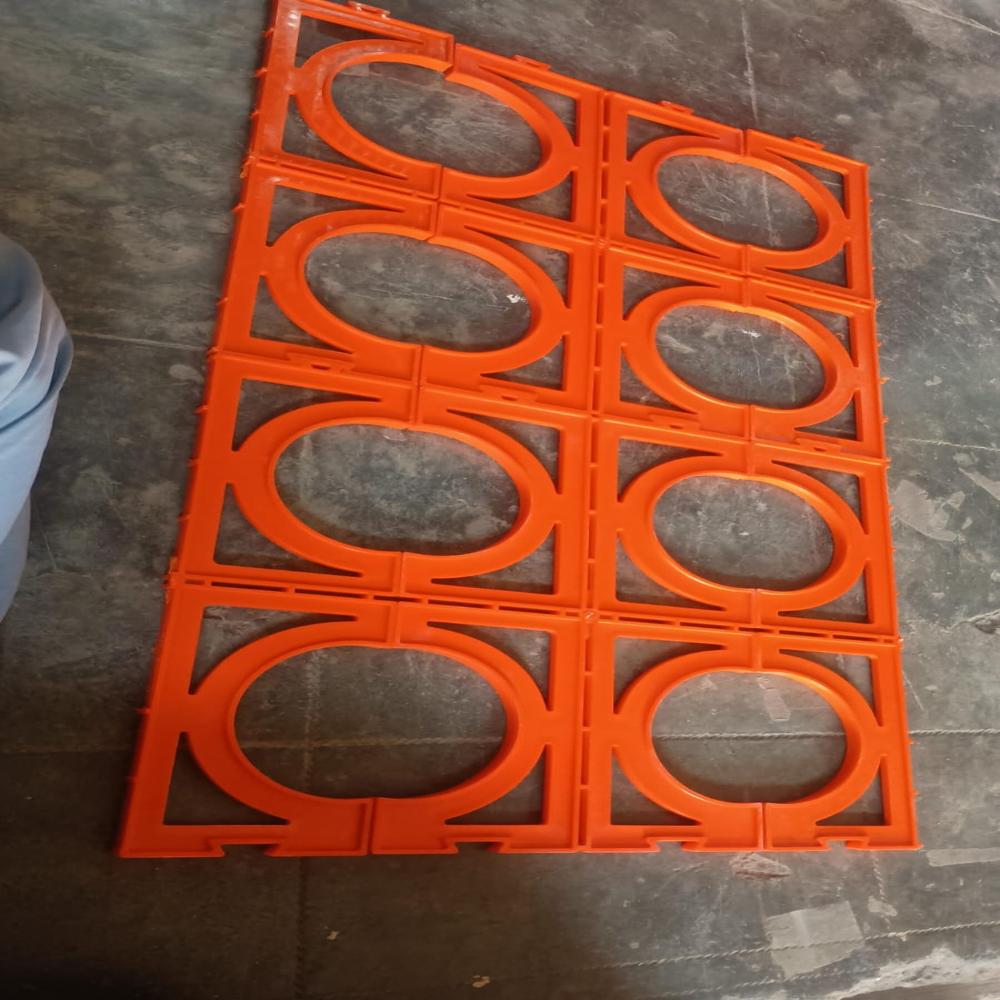

Orange Pipe Spacer
Price 12.0 INR / Unit
Minimum Order Quantity : 100 Units
Application : other, Underground and Overground Pipe Support
Flexibility : Rigid
Thickness : 5 mm
Color : Orange

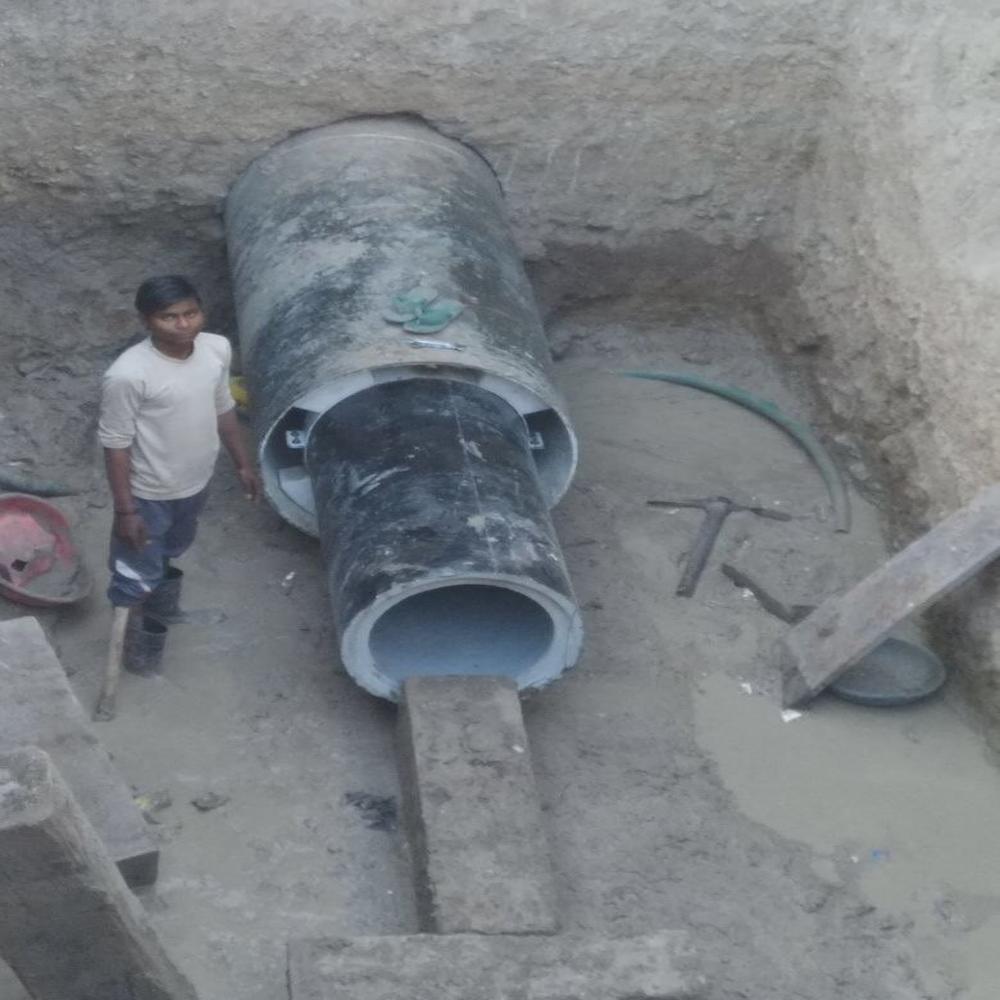

Pipe Casing Spacer
Price 600.0 INR / Piece
Minimum Order Quantity : 100 Pieces
Application : other, Water, Sewerage, Oil & Gas pipeline installation
Flexibility : Rigid
Thickness : 4 mm to 12 mm
Color : Black, White, Grey, or as specified

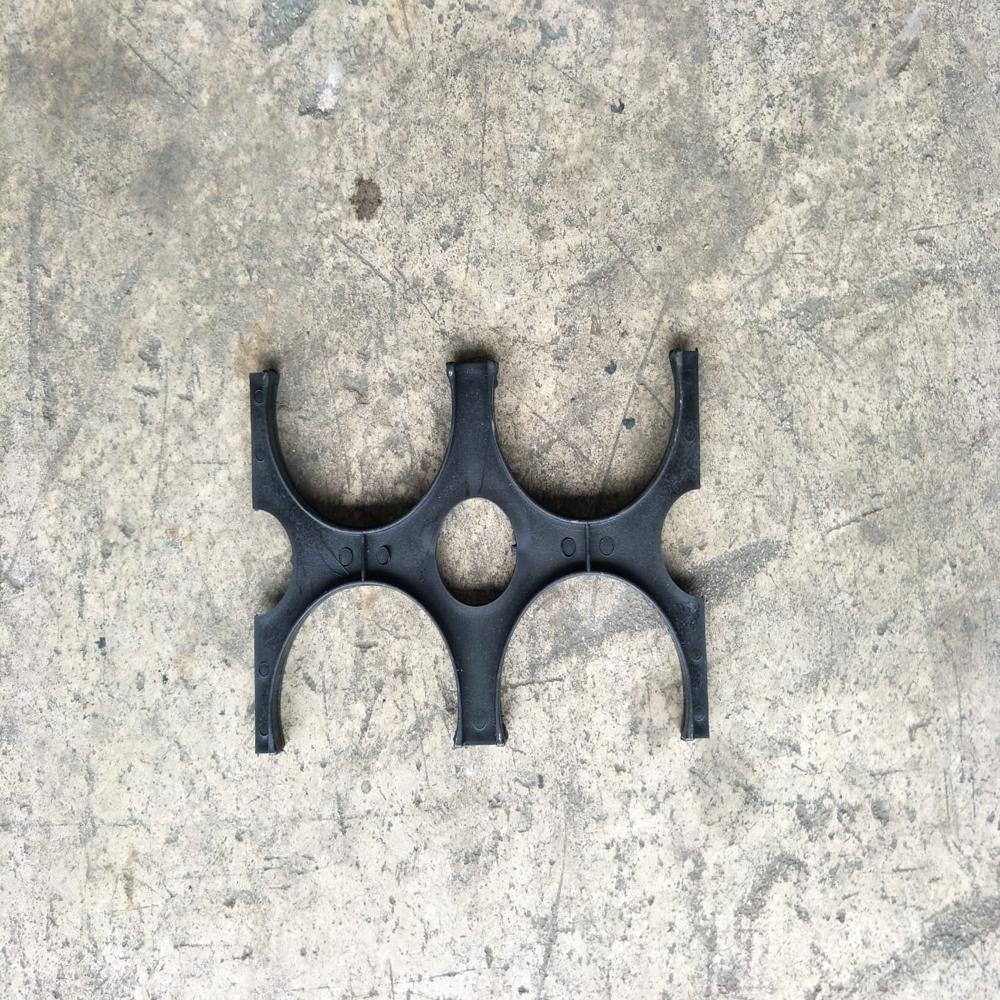

Duct Bank Spacers Spacing
