Pipe Casing Spacer

Pipe Casing Spacer Specification

Yield Strength
Standard material property

Diameter
50 mm to 1200 mm

Tensile Strength
14-35 MPa (material dependent)

Coating Type
No Additional Coating

Temperature Range
-20C to 80C

Sealing Type
Non-sealing / Spacer

Tolerance
1 mm

Flexibility
Rigid

Connection Type
Snap-on / Bolt-on

Product Type
Pipe Casing Spacer

Material
Polypropylene, HDPE, Nylon, or Stainless Steel

Connection
Slip-on / Snap-fit / Interlock

Shape
Round / Circular

Standard
ASTM A53, IS 4270, ASTM D2487

Surface Treatment
Corrosion Resistant / Smooth Finish

Outer Diameter
50 mm to 1200 mm

Section Shape
Circular

Length
Customizable up to 3 m

Thickness
4 mm to 12 mm

Color
Black, White, Grey, or as specified

Usage
Pipe support & alignment during casing

Rated Pressure
Up to 36 bar

Material Grade
Virgin UV Stabilized

Application
Water, Sewerage, Oil & Gas pipeline installation

Number of Segments per Spacer Ring
2 to 12 (as per diameter)

Weight
300 g to 2.5 kg (depending on size and material)

Installation Method
Manual, No special tools required

Fire Class
V-2 to V-0 (material dependent)

Spacer Height
20 mm to 150 mm

Resistance
UV, Acid, Alkali, Chemical and Impact Resistant

Load Bearing Capacity
Up to 1500 kg per ring

Spacer Clearance
10 mm to 75 mm

About Pipe Casing Spacer

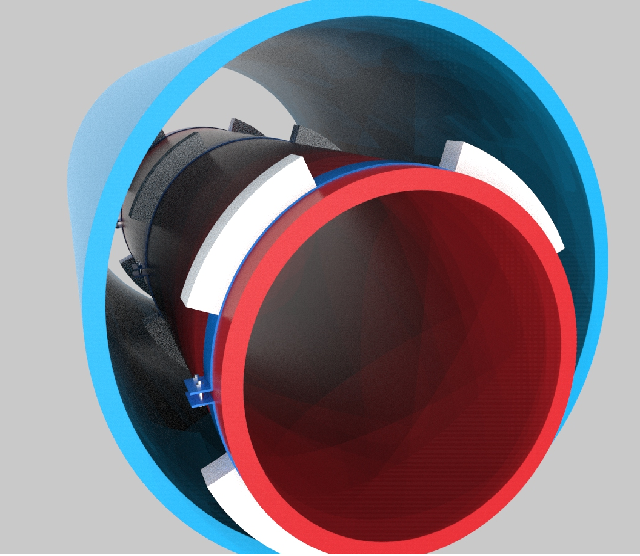

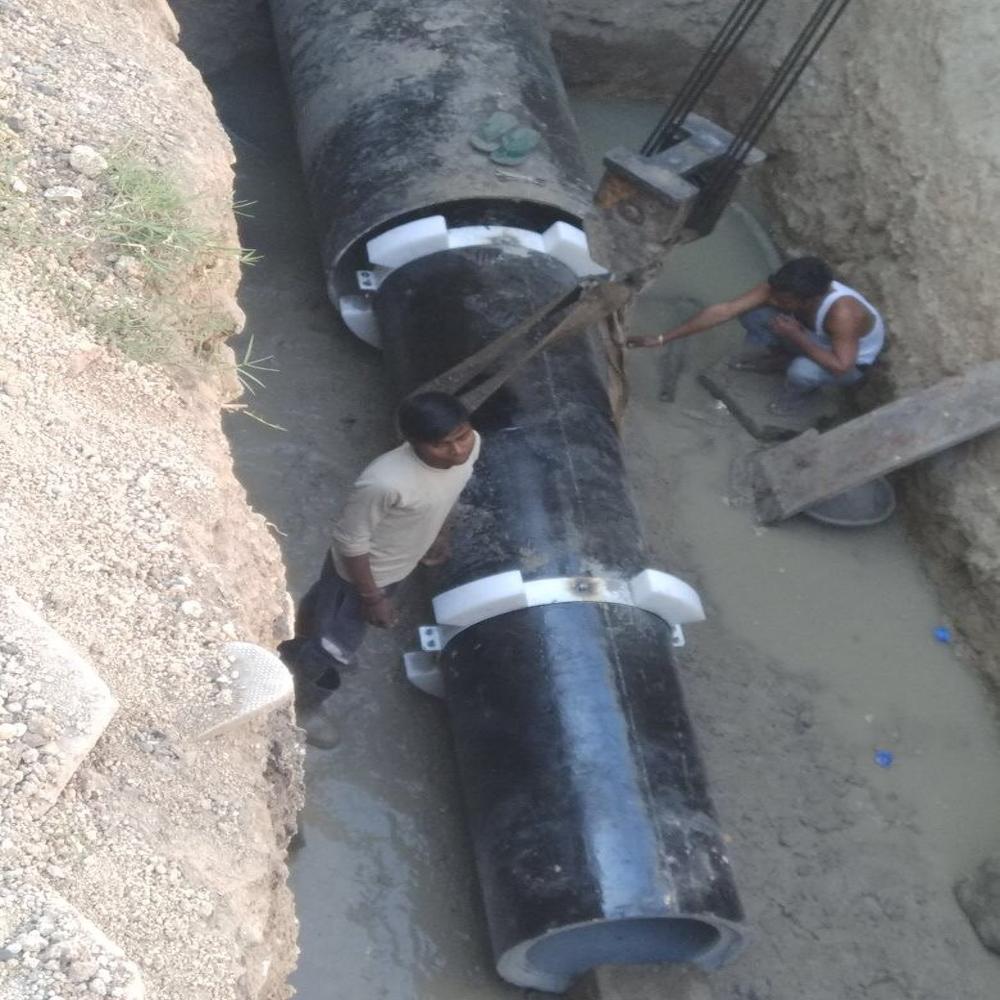

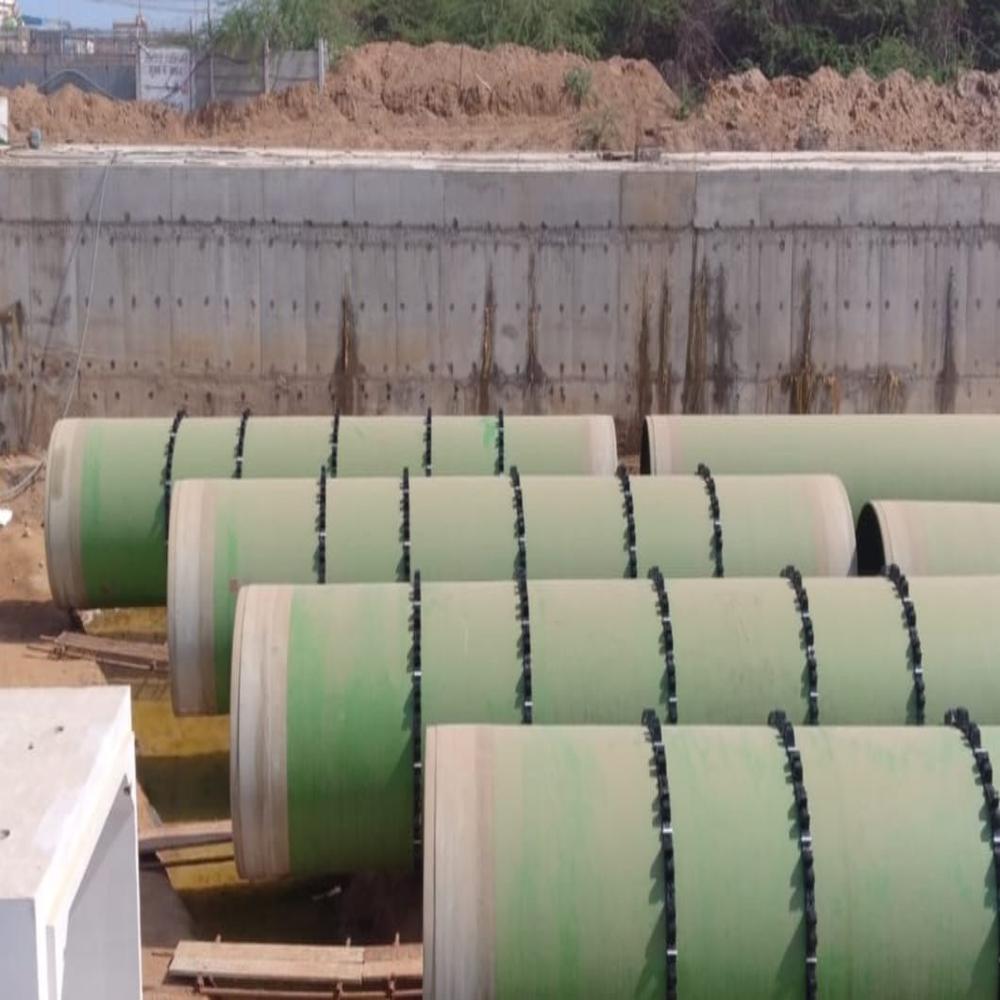

Although casing spacers play a small part in the installation process of a water or sewer carrier pipe, the part they play is an important one.

Also known as casing insulators, theyre able to improve a carrier pipes performance, reliability, and life-cycle. In addition, insulators ensure accurate alignment, provide support, and reduce pipe installation time.

Versatile Pipe Alignment Solutions

Pipe Casing Spacers are designed for use in diverse environments such as water, sewerage, and oil & gas pipelines. Featuring segment rings from 2 to 12, they accommodate pipes with diameters ranging from 50 mm to 1200 mm. The flexible configuration ensures a perfect fit for projects of varying scales, making installation straightforward and efficient.

Robust and Durable Construction

Crafted from high-grade materials like Polypropylene, HDPE, Nylon, or Stainless Steel, these spacers exhibit resistance to UV, acid, alkali, and chemical exposure. Impact-resistance and a smooth corrosion-resistant finish guarantee longevity and reliability, even in challenging field environments. Fire ratings up to V-0 ensure safety compliance where required.

Efficient Manual Installation

The spacers are designed for quick manual installation, requiring no special tools. Connection options such as slip-on, snap-fit, interlock, or bolt-on make the assembly process user-friendly and secure. Spacer height and clearance can be selected to meet specific technical demands, facilitating precise pipe positioning and reducing labor time.

FAQ's of Pipe Casing Spacer:

Q: How are Pipe Casing Spacers installed and do they require any special tools?

A: Pipe Casing Spacers are installed manually, and no special tools are required. They are designed for easy handling and can be connected using slip-on, snap-fit, interlock, or bolt-on mechanisms, ensuring a rapid and secure installation process.

Q: What are the main benefits of using these spacers in pipeline installations?

A: Using Pipe Casing Spacers provides precise pipe support and alignment, minimizes friction, and prevents pipe damage. Their chemical, UV, impact, and corrosion-resistant properties ensure long-term reliability. They also accelerate the installation process and contribute to safer and more dependable pipeline systems.

Q: In which applications or environments can these casing spacers be used?

A: These spacers are suitable for water, sewerage, oil, and gas pipeline installations. They perform effectively in demanding conditions due to their high resistance to chemicals, UV, and mechanical impacts, making them ideal for underground, aboveground, and industrial settings.

Q: What pipe sizes and diameters do these spacers accommodate?

A: Pipe Casing Spacers are available for outer diameters ranging from 50 mm up to 1200 mm. The number of segments per spacer ring and spacer height (from 20 mm to 150 mm) can be selected according to the specific diameter and support requirements of the pipeline.

Q: Are these spacers customizable according to project specifications?

A: Yes, the spacers offer customization in length (up to 3 meters), height, clearance, segment count, color, and material to suit individual project requirements and industry standards such as ASTM A53, IS 4270, and ASTM D2487.

Q: What makes these spacers suitable for heavy-duty applications?

A: With a load-bearing capacity of up to 1500 kg per ring, a tensile strength of up to 35 MPa, and robust resistance to environmental stressors, these Pipe Casing Spacers are engineered for exceptional durability in both standard and heavy-duty pipeline installations.
