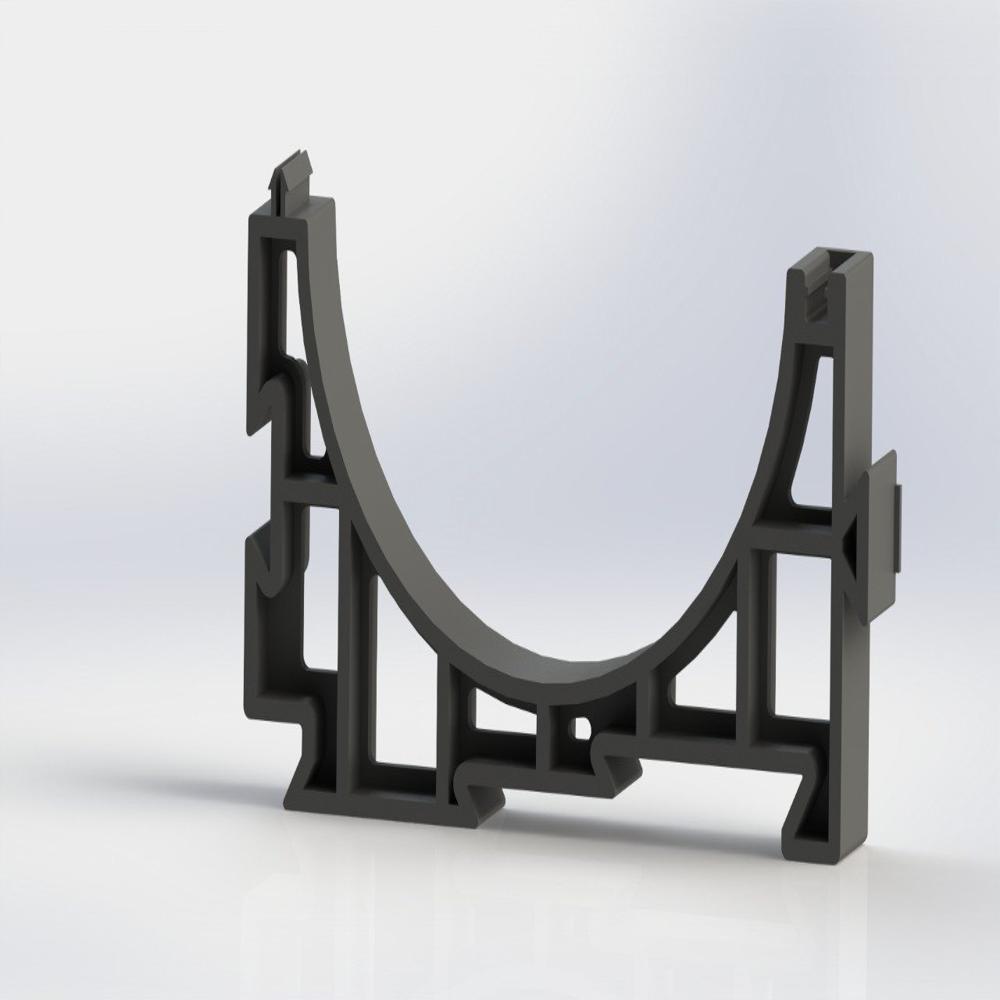

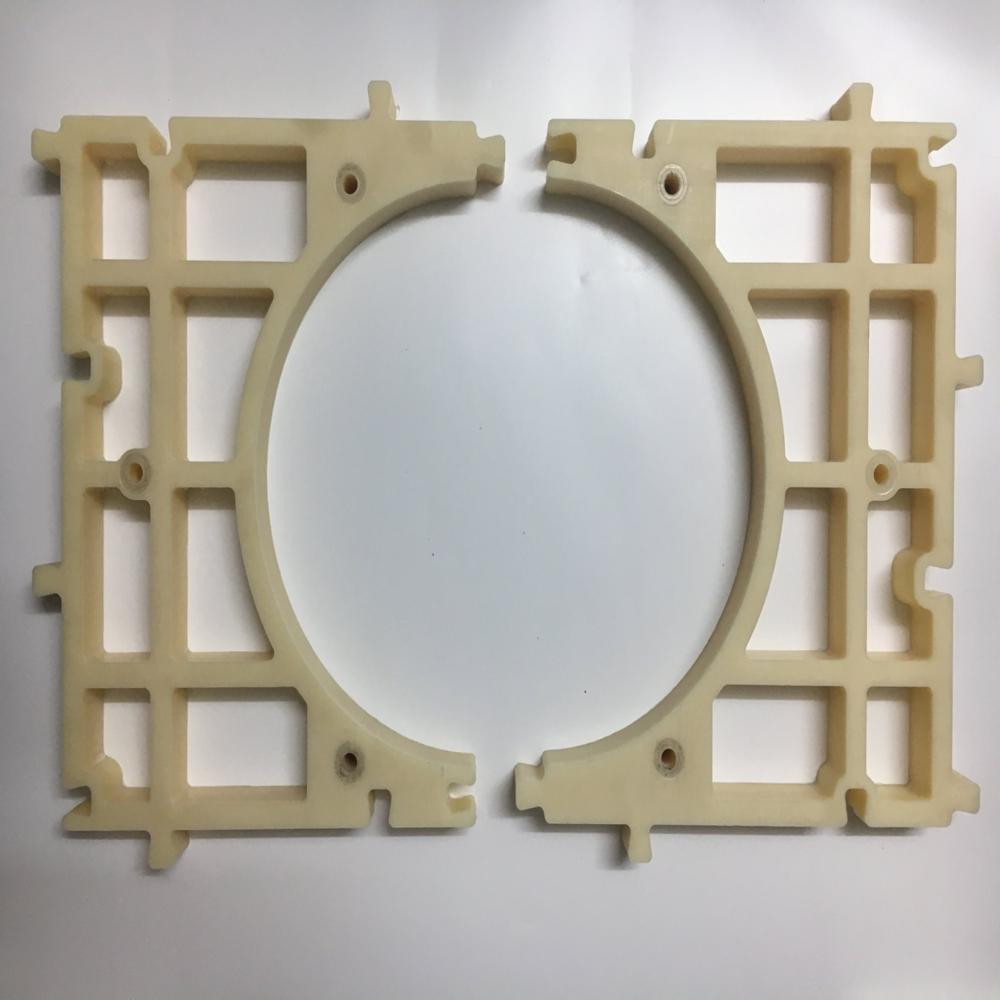

HDPE Pipe Spacer

HDPE Pipe Spacer Specification

Temperature Range
-40C to +60C

Tensile Strength
23 MPa

Diameter
Suitable for multiple pipe diameters

Yield Strength
19 MPa

Flexibility
Moderate flexibility for installation

Connection Type
Snap-fit

Tolerance
0.5 mm

Product Type
Pipe Spacer

Material
HDPE

Connection
Snap-fit, interlocking design

Shape
Other

Standard
ASTM D2513 / IS 4984

Surface Treatment
Smooth, Non-treated

Outer Diameter
Fits pipes of 40 mm to 150 mm OD

Section Shape
Multi-channel (for holding multiple pipes apart)

Length
200 mm (customizable)

Thickness
10 mm

Color
Black

Usage
Separation and alignment of HDPE pipes

Rated Pressure
N/A (non-pressure component)

Material Grade
PE100

Application
Underground pipe installation, duct bank spacers

Storage
Store in cool, dry place, away from sunlight

Environmental Compliance
RoHS compliant

UV Resistance
Excellent

Installation Method
Manual, stackable alignment

Dielectric Strength
Good

Weight
Approx. 150 g per piece

Density
0.95 g/cm3

Chemical Resistance
Resistant to acids, alkalis, and salts

Reusable
Yes

About HDPE Pipe Spacer

Our range of pipe casing spacers / insulators centre water and sewer pipes in casings. They are used to support and electrically insulate a pipeline from a casing pipe through which it must pass. The spacers are easy to install, are virtually corrosion proof, and provide insulating protection from a possible electrical shorting between the carrier pipe and casing. No special tools are required and they are easily applied by a single worker. The casing spacers eliminate the need to fill the casing annulus with sand and as they are so easy to remove, it allows damaged pipes to be repaired or replaced quickly. Let us know what your required runner height is (annular clearance between the inner pipe and the outer casing) and we will offer you a suitable solution for your pipeline.

Versatile Pipe Separation and Alignment

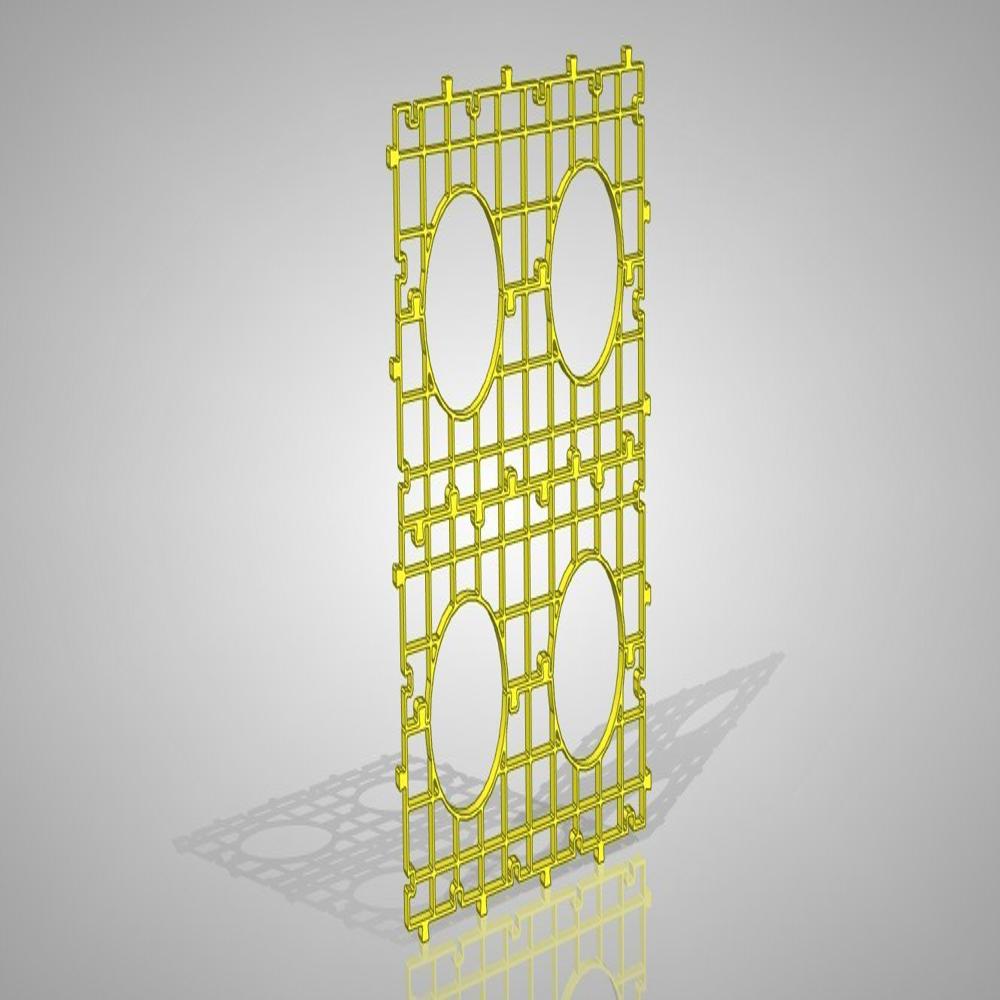

With its multi-channel profile and customizable length, this spacer efficiently holds and organizes multiple pipes during underground installations. The robust design provides consistent separation, ensuring proper alignment without the risk of lateral shifting.

Reliable Material for Demanding Environments

Made from PE100-grade HDPE, this spacer exhibits outstanding resistance to UV rays and harsh chemicals, including acids, salts, and alkalis. Its excellent dielectric properties and durability make it suitable for challenging construction settings.

Straightforward Manual Installation

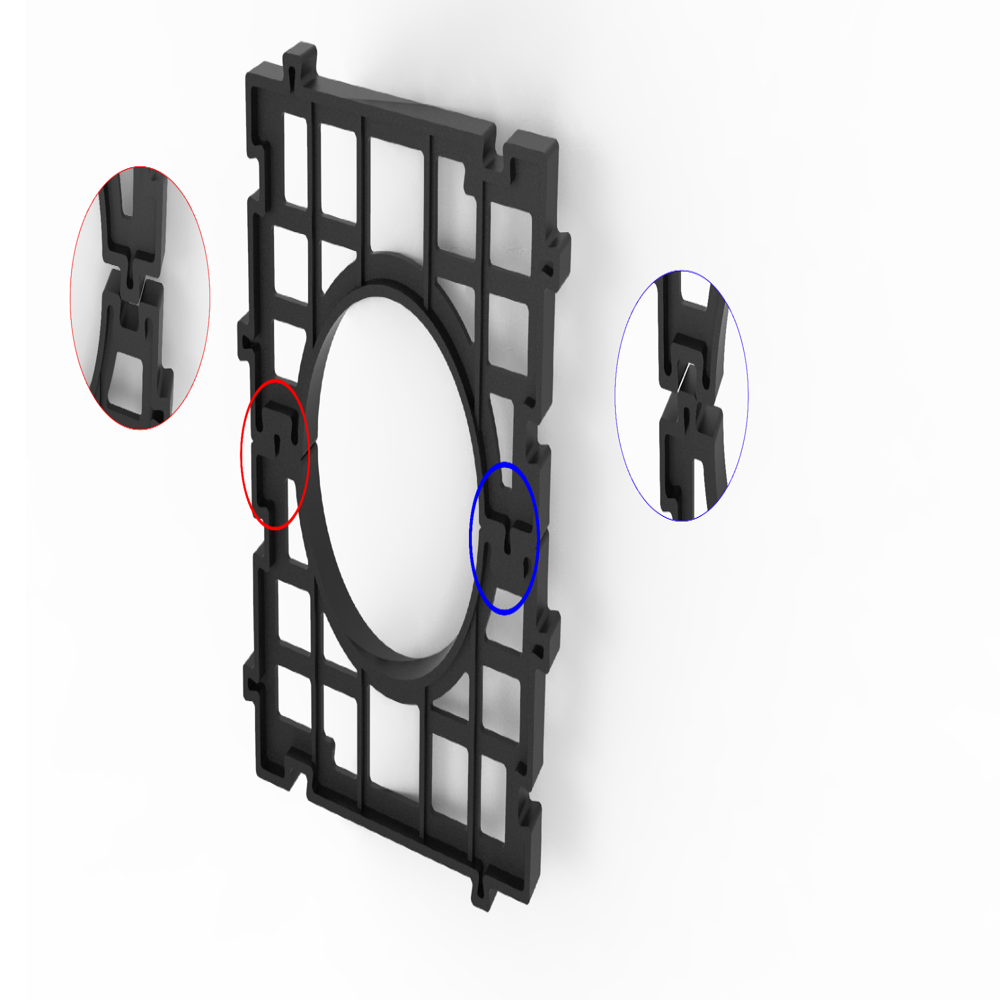

The snap-fit, interlocking system allows for simple manual placement and stacking. Its moderate flexibility accommodates varying site conditions, and each spacer's lightweight design streamlines the overall handling and setup process.

FAQ's of HDPE Pipe Spacer:

Q: How is the HDPE Pipe Spacer installed in the field?

A: The spacer features a manual installation method with a snap-fit, interlocking design. Simply position the pipes within the multi-channel sections and snap spacers together as required to achieve secure, stackable alignment.

Q: What are the primary applications for this pipe spacer?

A: It is widely used for separating and aligning HDPE pipes, especially in underground installations and duct bank projects, where consistent spacing and organization are critical.

Q: When should I use this spacer instead of traditional pipe blocks?

A: Opt for this spacer when you require precise, consistent pipe alignment, chemical and UV resistance, or when environmental compliance and reusability are priorities on your project site.

Q: Where should I store the HDPE Pipe Spacers before installation?

A: Store the spacers in a cool, dry area, away from direct sunlight and moisture, to maintain their mechanical properties and extend their usable lifespan.

Q: What is the benefit of the multi-channel, stackable design?

A: The multi-channel construction allows you to secure several pipes at once, and the stackable, interlocking system maintains uniform pipe separation across multiple layers, enhancing installation precision and saving time.

Q: How does the product ensure chemical resistance and environmental safety?

A: The spacer is manufactured from PE100 HDPE, offering excellent resistance to acids, alkalis, and salts, and it is certified RoHS compliant, making it a safe and reliable choice for environmentally-sensitive projects.
