DUCT SPACER

• Application
• other, Electrical cable and telecom duct installations

• Bend Radius
• Rigid spacer - does not bend

• Coating Type
• Uncoated, UV Stabilized

• Color
• Black/Grey

• Connection
• Other, Interlocking Snap-Fit

• Connection Type
• Snap-on

• Diameter
• Applicable to duct ODs 90 mm to 150 mm

• Flexibility
• Semi-Rigid

• Length
• 300 mm

• Material
• Plastic

• Material Grade
• Virgin Grade HDPE

• Outer Diameter
• N/A (Grid applies to duct arrangement)

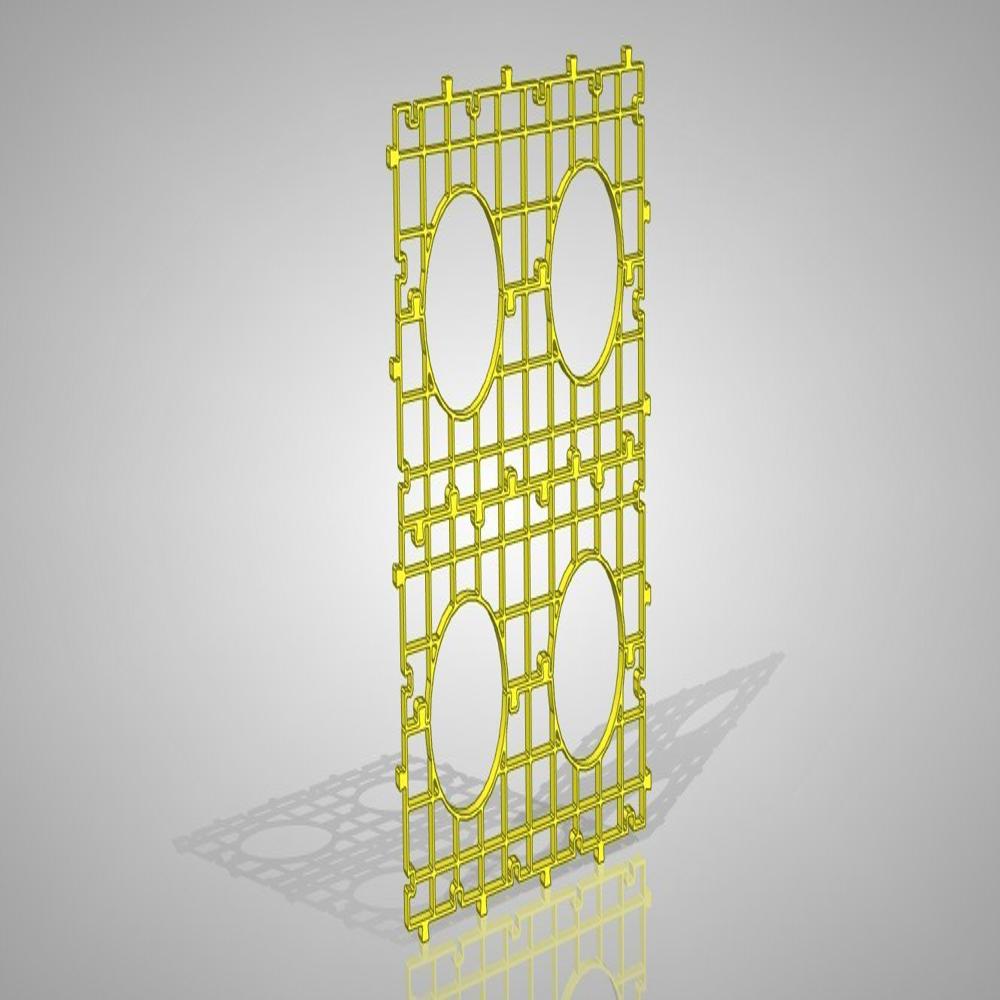

• Product Type
• Other, Duct Spacer Underground

• Sealing Type
• Non-sealing/Spacer only

• Section Shape
• Other, Multi-duct Grid

• Shape
• Rectangular

• Standard
• Other, Conforms to IS and ASTM standards

• Surface Treatment
• Other, UV Stabilized Finish

• Temperature Range
• -20C to 60C

• Tensile Strength
• >=23 MPa

• Thickness
• 6 mm

• Tolerance
• 2 mm

• Usage
• Separation of Ducts/Cables Underground

• Yield Strength
• >=19 MPa

• Application
• other, Underground Cable and Pipe Laying

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Snap Fit / Interlocking

• Connection Type
• Push Fit

• Diameter
• Applicable to 63 mm to 200 mm duct

• Flexibility
• Rigid

• Length
• 250 mm

• Material
• Other

• Material Grade
• HDPE PE100

• Outer Diameter
• N/A (applies to pipe)

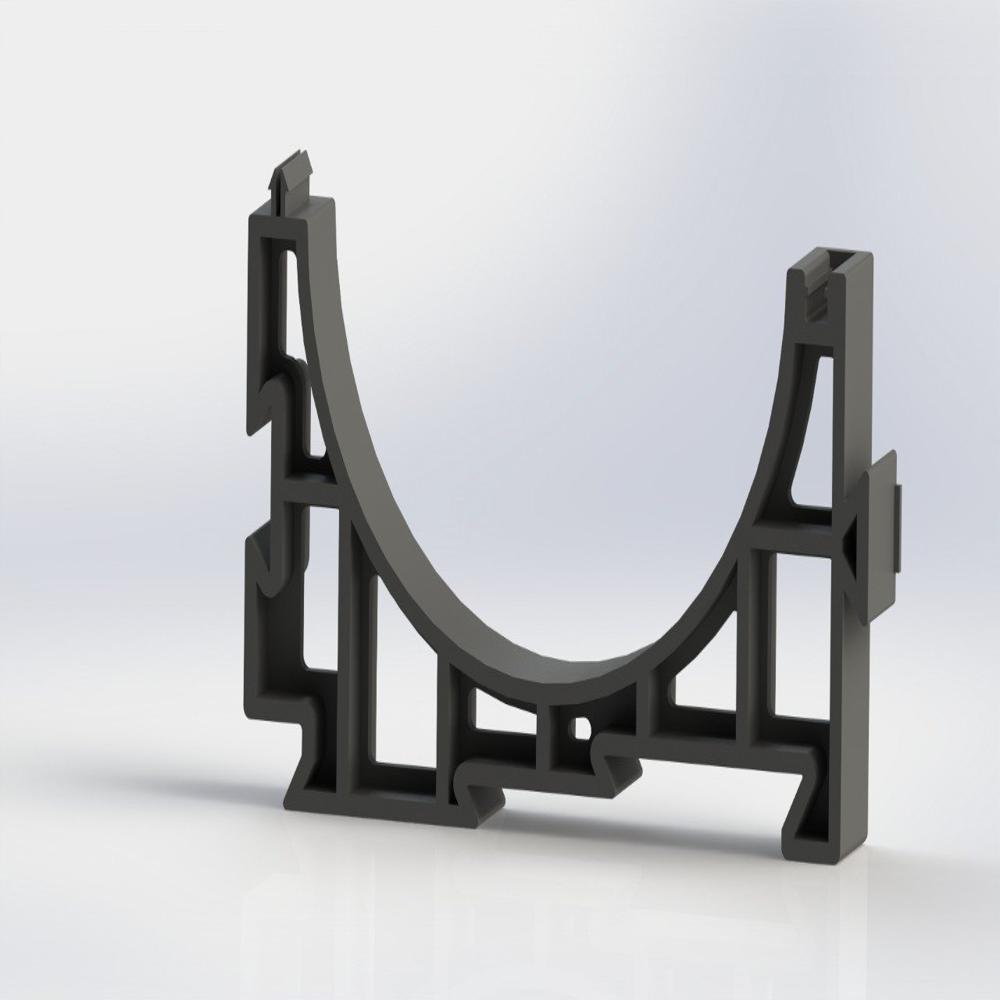

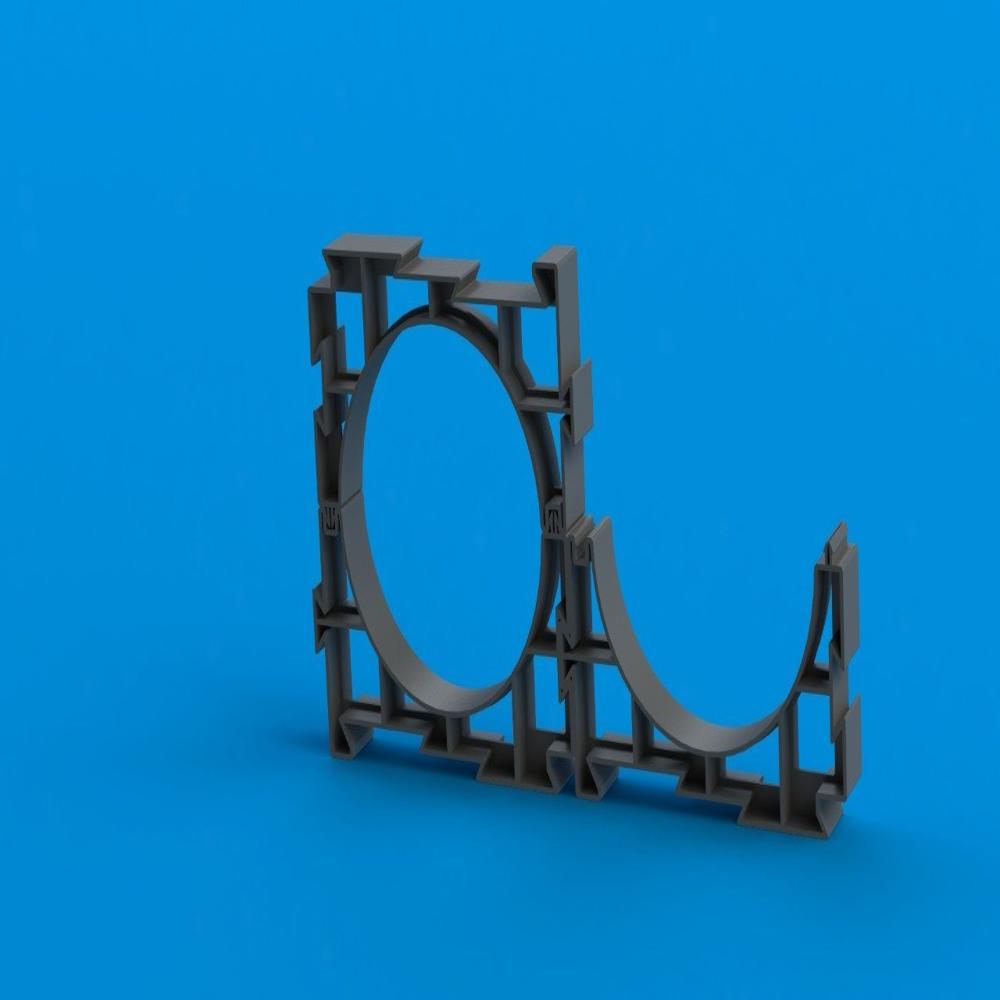

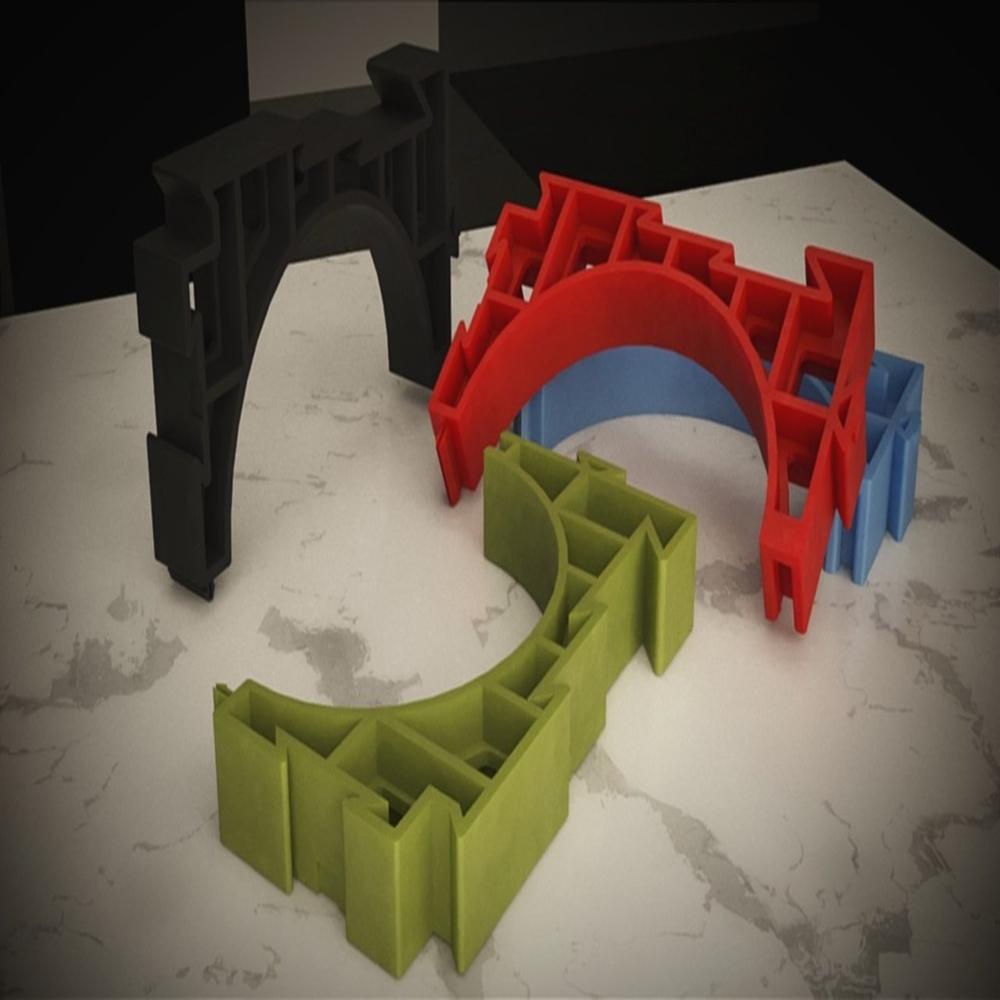

• Product Type
• Other, Pipe Duct Spacer

• Section Shape
• Other, Channel / Spacer Grid

• Shape
• Rectangular

• Standard
• Other, IS 2529 / Custom Standard

• Surface Treatment
• Other

• Temperature Range
• -20C to +60C

• Tensile Strength
• > 25 MPa

• Thickness
• 8 mm

• Tolerance
• 2 mm

• Usage
• Cable Duct Installation

• Yield Strength
• > 22 MPa
