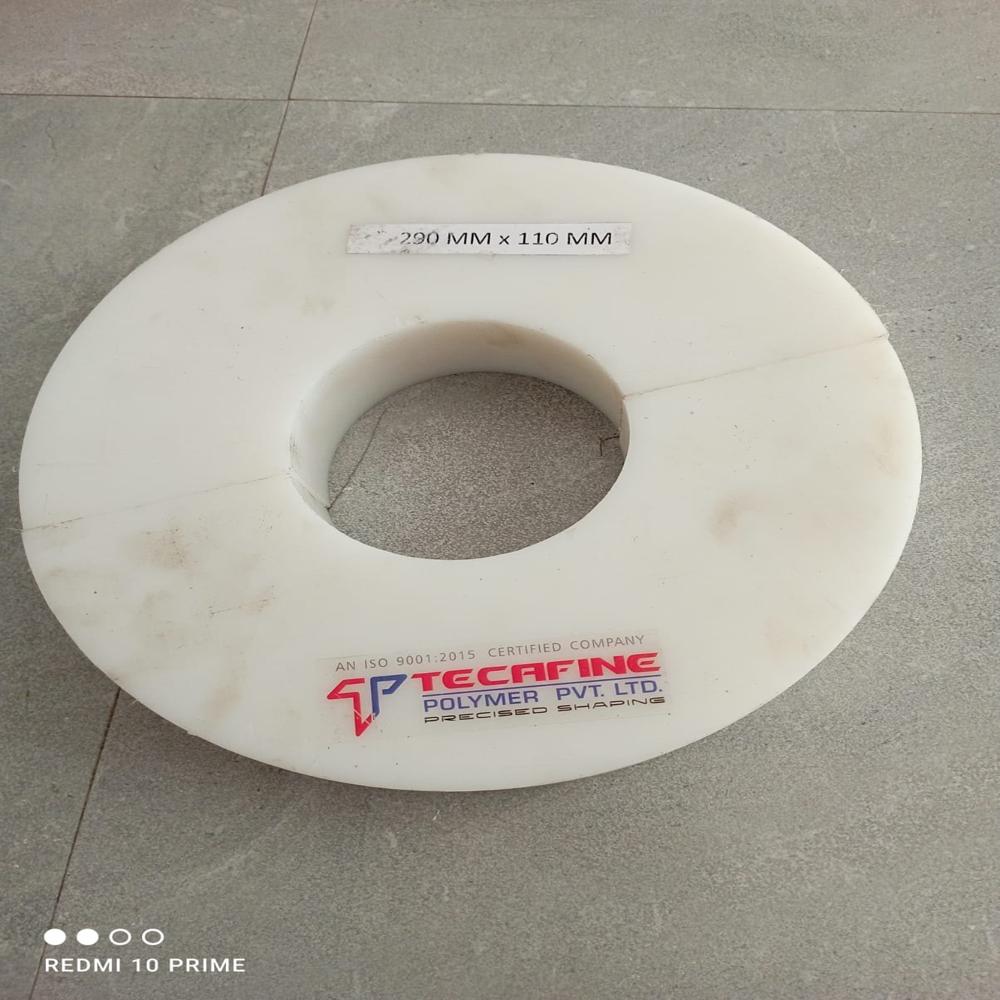

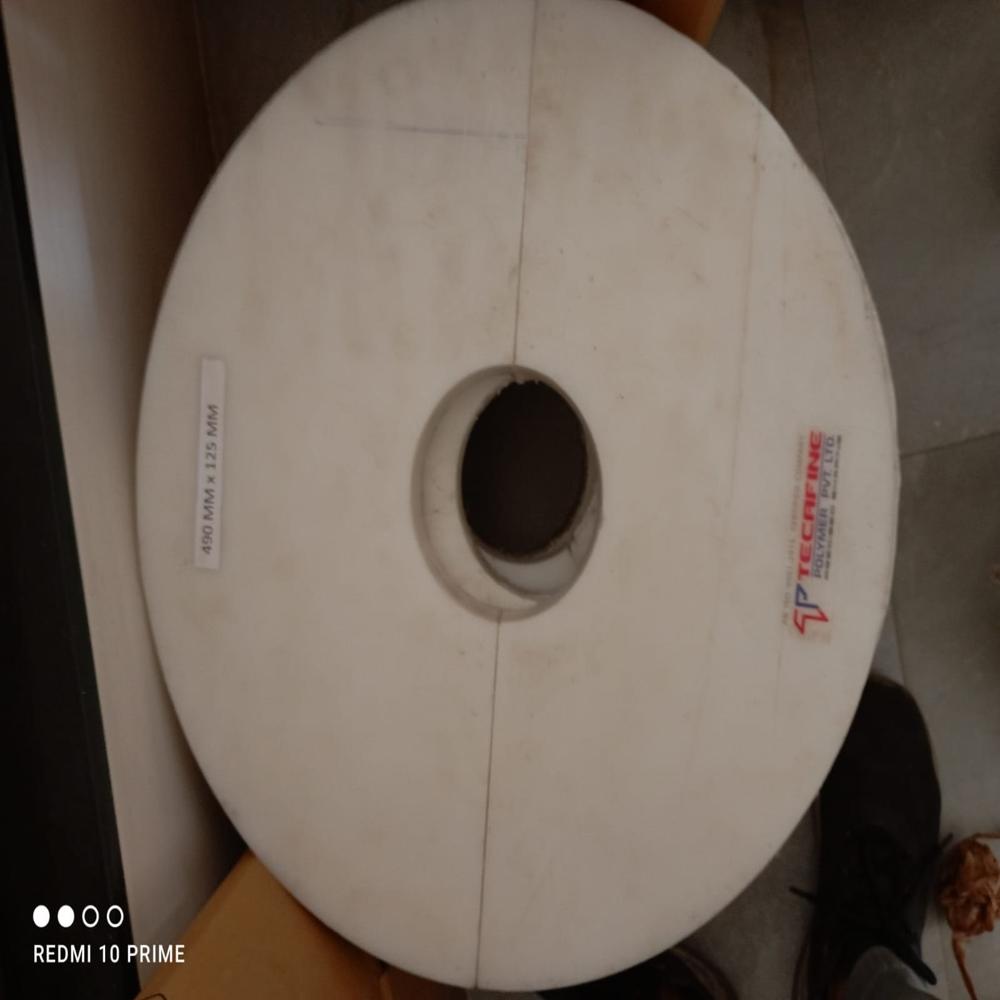

Duct Casing Spacer

Duct Casing Spacer Specification

Flexibility
Rigid

Yield Strength
25 MPa

Diameter
110 mm

Tolerance
1 mm

Bend Radius
Fixed

Connection Type
Interlocking

Temperature Range
-20C to +60C

Tensile Strength
30 MPa

Product Type
Duct Casing Spacer

Material
HDPE

Connection
Snap-Fit Joint

Shape
Other

Standard
ASTM, IS Standard

Surface Treatment
Natural/Uncoated

Outer Diameter
110 mm

Section Shape
Circular

Length
50 mm

Thickness
7 mm

Color
Black

Usage
Maintaining Spacing in Ducts & Casing Pipes

Rated Pressure
Up to 6 bar

Material Grade
UV Stabilized

Application
Duct Cable Management & Spacing

Reusability
Yes

Min. Pipe Size Compatibility
63 mm

Shape Customization
Available

Spacer Height
50 mm

Installation Method
Manual, Tool-Free

Weight per Unit
0.15 kg

Eco-Friendly
Yes

Chemical Resistance
Excellent (Acid & Alkali Resistant)

Fire Resistance
Self-Extinguishing Grade

Number of Supports per Spacer
8

Max. Pipe Size Compatibility
200 mm

UV Resistance
Yes

About Duct Casing Spacer

Although casing spacers play a small part in the installation process of a water or sewer carrier pipe, the part they play is an important one.

Also known as casing insulators, theyre able to improve a carrier pipes performance, reliability, and life-cycle. In addition, insulators ensure accurate alignment, provide support, and reduce pipe installation time.

Versatile and Durable Duct Spacing Solution

Engineered for compatibility with pipe sizes ranging from 63 mm to 200 mm, this duct casing spacer provides secure cable management in a wide array of applications. Its HDPE composition ensures excellent resistance to chemicals and UV exposure, making it suitable for indoor and outdoor use. The robust, rigid design resists mechanical stress, supporting heavy-duty operations, while its eco-friendly/reusable construction promotes sustainable usage.

Simple, Tool-Free Installation

Designed with a user-friendly snap-fit joint and interlocking connections, the duct spacer can be installed manually without tools. Eight independent supports per unit offer stability within the duct or casing pipe, ensuring accurate spacing and reducing potential cable damage. Its lightweight design makes handling and installation quick and easy, saving time on site.

FAQ's of Duct Casing Spacer:

Q: How do you install the duct casing spacer, and is any special equipment required?

A: Installation is straightforward and manual-simply position the spacer inside the duct or casing pipe and snap the interlocking connections together. No tools or special equipment are required, making the process quick and efficient.

Q: What types and sizes of pipes can be used with this spacer?

A: The spacer is designed for ducts and pipes with outer diameters between 63 mm and 200 mm. This broad compatibility makes it suitable for most standard cable and pipe management systems.

Q: When should you use this duct casing spacer instead of a traditional support?

A: Use this spacer whenever precise and consistent spacing is critical, particularly where chemical resistance, UV protection, and fire safety are required. Its self-extinguishing and robust properties make it ideal for sensitive or demanding environments.

Q: Where is this spacer commonly applied?

A: It is primarily used in cable management ducts and casing pipes within commercial, industrial, or infrastructure projects in both indoor and outdoor settings. Its chemical and UV-resistance make it suitable for diverse environments, including corrosive or bright sunlight areas.

Q: What are the benefits of the HDPE material used in the spacer?

A: HDPE offers superior resistance to acids, alkalis, and UV rays. It combines high tensile and yield strengths with eco-friendly and reusable qualities, making the spacer durable, long-lasting, and sustainable.

Q: Is the spacer customizable for different shapes or configurations?

A: Yes, shape customization is available, allowing the spacer to be tailored to unique duct or project requirements. This flexibility ensures seamless integration into varied cable management systems.
