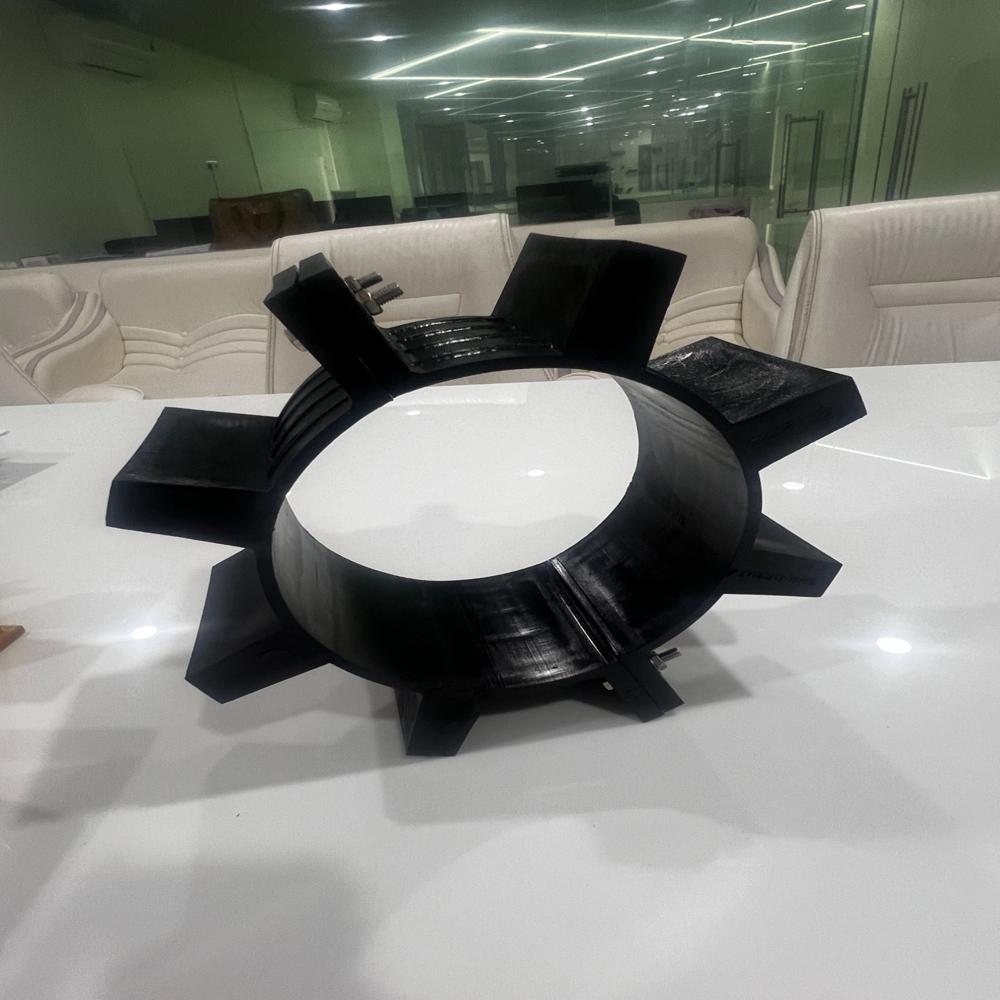

Send InquiryPipe Casing Insulator
Pipe Casing Insulator Specification
- Melting Point
- 130C - 135C
- Surface Finish
- Smooth
- Leak Protection
- Yes
- UV Resistant
- Yes
- Plastic Type
- Engineering Plastic (HDPE)
- Density
- 0.95 Gram per cubic centimeter(g/cm3)
- Heat Resistance
- Yes
- Tensile Strength
- 28 MPa
- Color Pattern
- Solid
- Type
- PIPE CASING
- Material
- PLASTIC
- Shaping Mode
- Injection Molding
- Length
- Customized (commonly 1 meter to 3 meters)
- Weight
- 350-500 grams (varies by size)
- Hardness
- Shore D 65-70
- Plastic Molding Type
- Injection Molding
- Color
- Black
- Size
- 2 inch, 4 inch, 6 inch, 8 inch and custom sizes
- Fire Retardant
- Available upon request
- Water Absorption
- <0.01%
- Insulation Resistance
- >100 M
- Installation
- Quick snap-fit design, no tools required
- Corrosion Protection
- Excellent for buried pipelines
- Operating Temperature Range
- -40C to +90C
- Application Pipe Range
- Suitable for steel, ductile, and plastic pipelines
- Dielectric Strength
- >12 kV/mm
- Compression Strength
- 4000 N
About Pipe Casing Insulator
Although casing spacers play a small part in the installation process of a water or sewer carrier pipe, the part they play is an important one.
Also known as casing insulators, theyre able to improve a carrier pipes performance, reliability, and life-cycle. In addition, insulators ensure accurate alignment, provide support, and reduce pipe installation time.
Reliable Electrical and Corrosion Insulation
With a robust dielectric strength exceeding 12 kV/mm and insulation resistance greater than 100 M, our casing insulator isolates pipelines efficiently, preventing unwanted current flow and reducing the risk of electrical hazards. Its engineering plastic build further enhances corrosion resistance, offering a durable solution for buried or exposed pipes in diverse conditions.
Effortless Installation and Customization
Designed with a quick snap-fit mechanism, our pipe casing insulator streamlines installation-no specialized tools or equipment are needed. The length is customizable from 1 to 3 meters, while diameter options and tailored sizing cater to varied project requirements. This flexibility ensures compatibility with steel, ductile, and plastic pipelines across multiple installations.
Advanced Material and Performance Features
Manufactured using high-density polyethylene (HDPE) by injection molding, this insulator delivers high tensile strength (28 MPa), excellent compression (4000 N), and low water absorption (<0.01%). Its smooth, solid black finish is UV-resistant, making it suitable for both exposed and underground applications while providing reliable leak and corrosion protection.
FAQ's of Pipe Casing Insulator:
Q: How is the pipe casing insulator installed on pipelines?
A: The pipe casing insulator features a quick snap-fit design that enables fast and secure installation without the need for tools. Simply align and snap it in place around the pipeline, making the process convenient for both new installations and retrofits.Q: What types of pipes can use this casing insulator?
A: This casing insulator is suitable for a wide range of pipeline materials, including steel, ductile iron, and plastic pipes. It is available in standard sizes (2", 4", 6", 8") and can be custom-sized to fit specific project requirements.Q: When should fire-retardant pipe casing insulators be requested?
A: Fire-retardant options should be considered for applications in environments with higher fire safety requirements or where exposure to elevated temperatures is a concern. This feature is available upon request to enhance safety in such scenarios.Q: Where is this product most effectively used?
A: Our pipe casing insulator is particularly effective for buried pipelines and external pipelines where corrosion and electrical insulation are critical. Its excellent leak protection and UV resistance also make it suitable for outdoor and industrial environments.Q: What benefits does the insulator offer against corrosion?
A: By providing superior insulation and forming a barrier between the pipe and its environment, the insulator effectively mitigates corrosion risks, especially in buried pipelines. Its low water absorption and HDPE construction further enhance durability and longevity.Q: How is the product manufactured and what materials are used?
A: The pipe casing insulator is injection molded from high-density polyethylene (HDPE), a tough engineering plastic. This process ensures dimensional accuracy, consistent quality, and a smooth surface finish in each unit.Q: Can I request custom lengths or sizes for my project?
A: Yes, our pipe casing insulators are available with customizable lengths (commonly 1 to 3 meters), and we can tailor diameter and sizing to match specific project pipelines. Please contact us with your requirements for a personalized solution.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Plastic Spacers Category

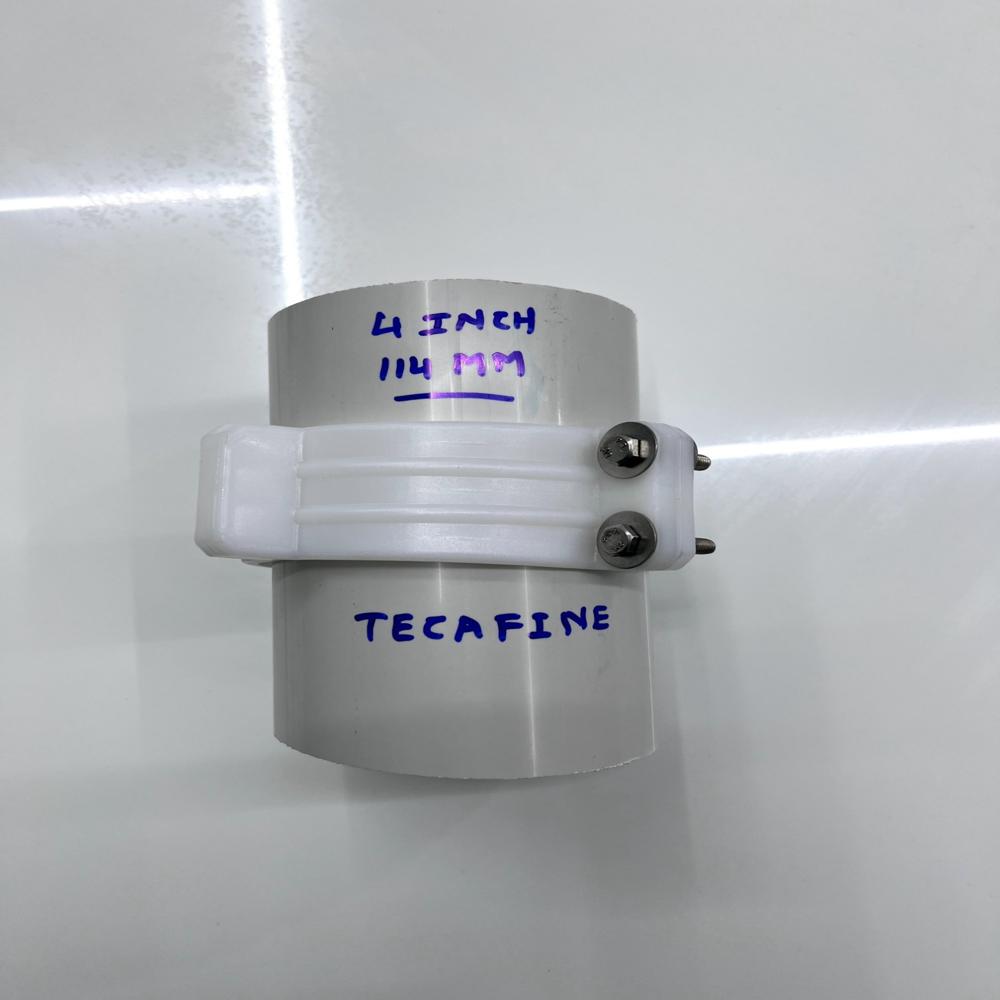

PVC Pipe Spacer
