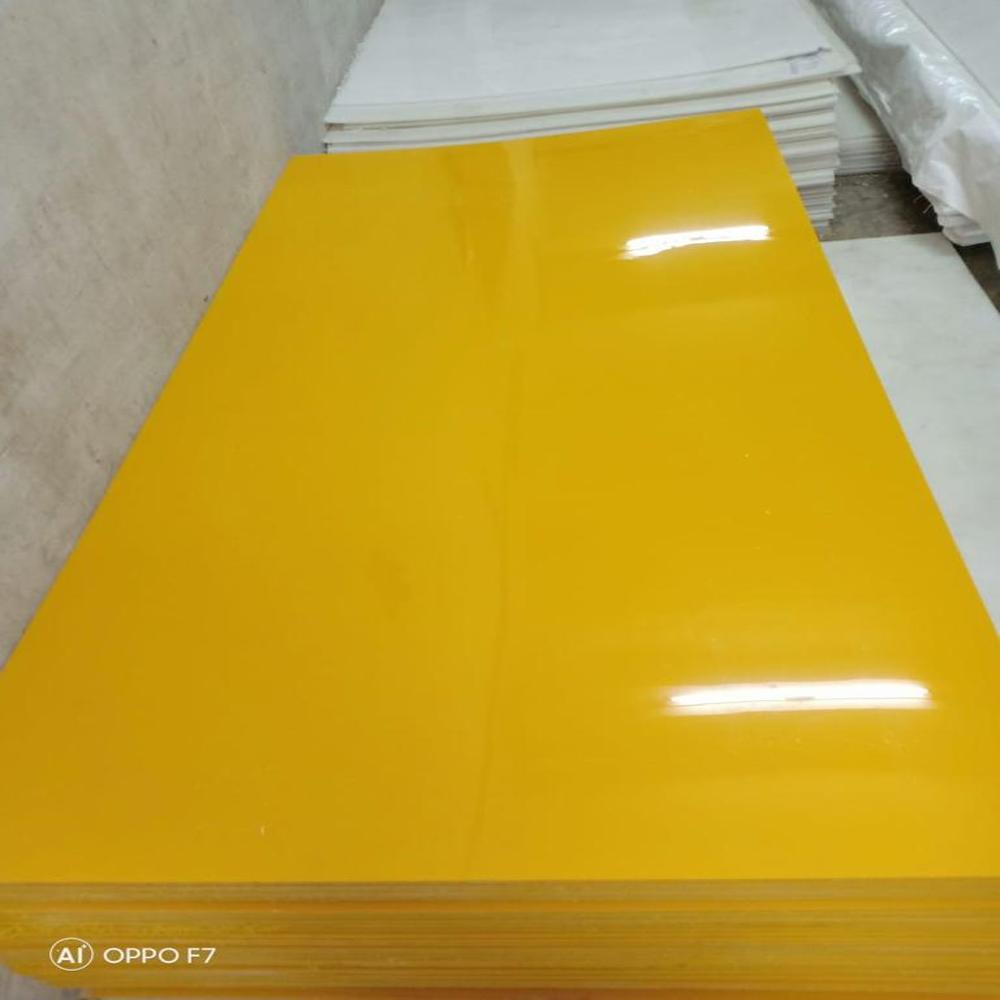

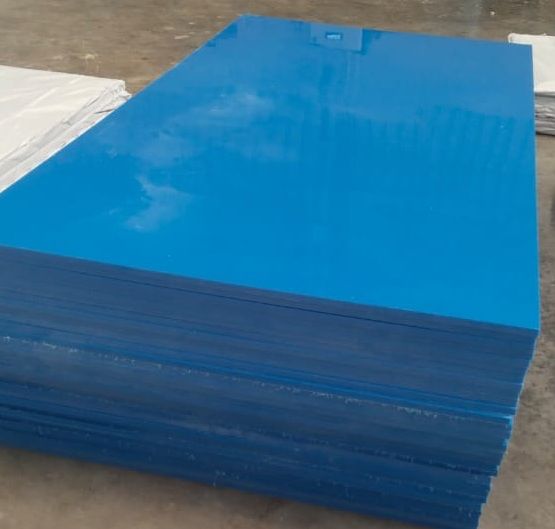

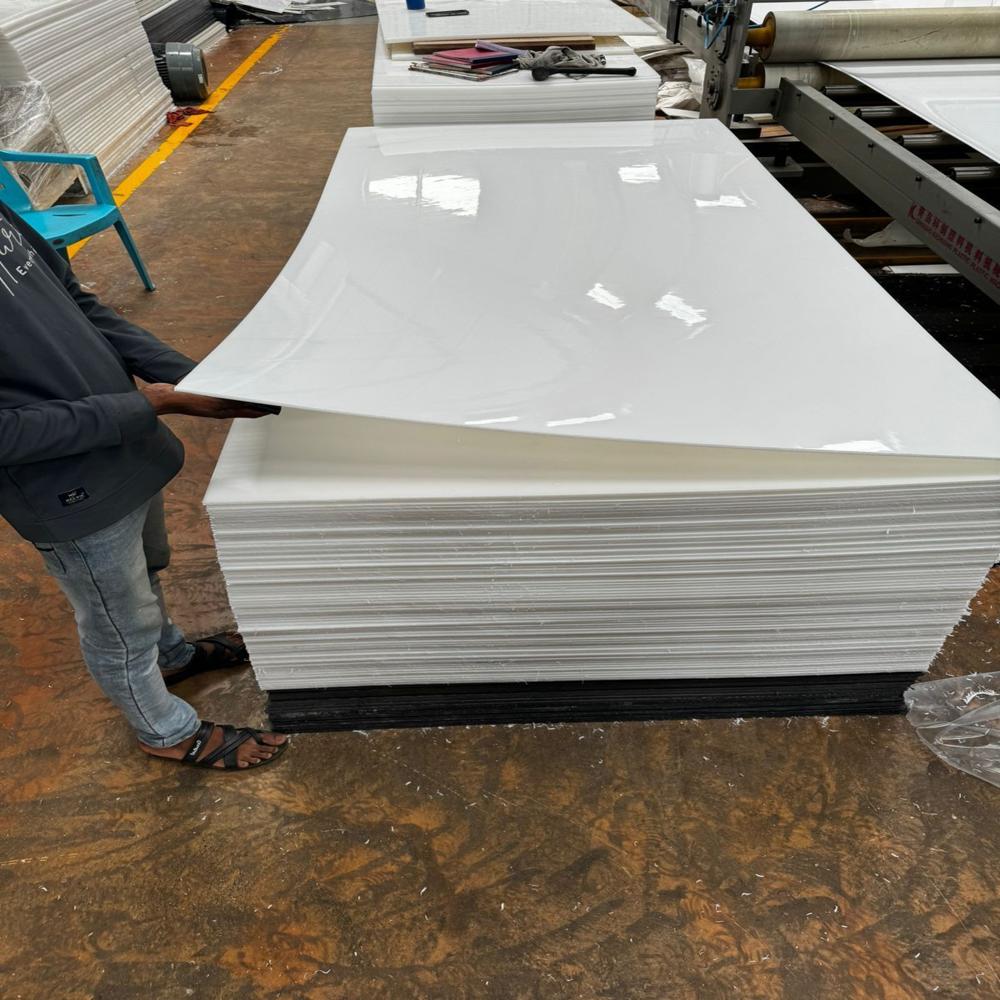

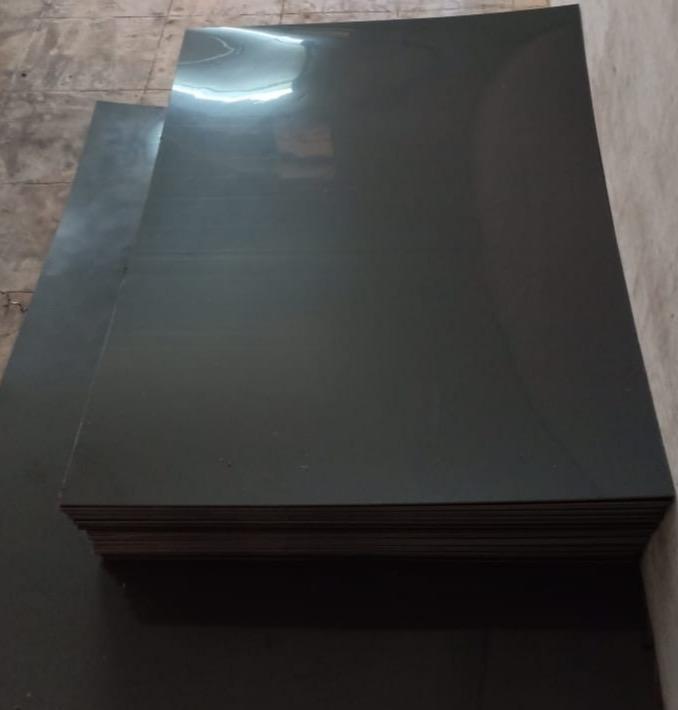

HDPE Shuttering Sheets

HDPE Shuttering Sheets Specification

Tolerance
0.5 mm

Feature
Reusable, Weather Resistant, Termite Proof, Eco-Friendly, Lightweight, Non-stick Surface

Surface Finish
Smooth, Glossy

Grade
Virgin HDPE

Size
8x4 feet, Custom sizes on request

Thermal Conductivity
Low (Good Insulation)

Water Absorption
<0.03%

Back
Smooth HDPE Finish

Formaldehyde Emission Standards
None (Formaldehyde Free)

Face
Smooth HDPE Finish

Glue Type
Non-applicable

Core Material
High Density Polyethylene (HDPE)

Material
Plastic (HDPE)

Plywood Type
Shuttering Sheet (Plastic Plywood Substitute)

Usage
Construction, Formwork, Concrete Shuttering

Thickness
12 mm, 15 mm, 18 mm or as per requirement

Glue
Non-applicable (welded joints if required)

Load Capacity
High load bearing capacity, suitable for heavy RCC work

Moisture Content
Less than 5%

Density
0.95 Gram per cubic centimeter(g/cm3)

Chemical Resistance
Resistant to most acids and alkalis

Weight
Approximately 19-25 kg/sheet depending on thickness

Compliance
IS: 4990 (as applicable for plastic formwork)

Edge Type
Straight Cut or Customized edge

UV Resistance
Yes

Reusable Cycles
Over 50 times

Impact Resistance
Excellent

Flexural Strength
High

Nail Holding Capacity
Good

Service Temperature Range
-40C to +80C

Color
Black, Grey, or as per requirement

About HDPE Shuttering Sheets

HDPE (High-Density Polyethylene) shuttering sheets are robust, durable plastic sheets commonly used in the construction industry, particularly for formwork and shuttering applications. These sheets are made from HDPE, a thermoplastic polymer known for its high strength, chemical resistance, moisture resistance, and low maintenance requirements. HDPE shuttering sheets provide an excellent alternative to traditional wood or metal formwork materials, offering a lightweight, cost-effective solution for creating molds and forms for pouring concrete.

One of the primary benefits of HDPE shuttering sheets is their resistance to harsh environmental conditions. They are highly resistant to water, chemicals, and wear, making them ideal for outdoor construction sites where formwork is exposed to moisture, weather, and repeated use. Unlike wooden shuttering, which can warp or degrade over time, HDPE sheets retain their shape and strength even under extreme conditions, leading to a longer service life.

In addition, HDPE shuttering sheets are easy to handle and install, thanks to their lightweight nature and flexibility. They can be cut, welded, or molded into different shapes and sizes to suit specific construction needs. Their smooth surface also reduces friction, making it easier to remove the formwork after the concrete has set.

Overall, HDPE shuttering sheets are a durable, reusable, and low-maintenance option for the construction industry, offering an eco-friendly alternative to traditional formwork materials.

Exceptional Reusability and Strength

With the ability to be reused more than 50 times and engineered with high flexural strength, HDPE Shuttering Sheets present a long-lasting, robust solution for heavy RCC work. Their impact-resistant design allows them to withstand demanding construction environments, maintaining shape and structure even after repeated use.

Eco-Friendly and Health-Safe

Produced using virgin high-density polyethylene without any formaldehyde or hazardous emissions, these sheets are safe for users and the environment. They offer a sustainable, non-toxic alternative to traditional plywood, minimizing construction waste and environmental impact.

Customizable and Versatile Applications

Available in standard 8x4 ft sizes and thicknesses like 12 mm, 15 mm, and 18 mm, HDPE Shuttering Sheets can also be tailored to specific construction needs. Their versatile properties - superior chemical and weather resistance, non-stick surface, and lightweight design - make them suitable for various concrete shuttering and formwork projects.

FAQ's of HDPE Shuttering Sheets:

Q: How are HDPE Shuttering Sheets used in construction?

A: HDPE Shuttering Sheets serve as temporary molds for concrete during building projects, replacing traditional wooden or steel shuttering. They are installed to create the desired shape for columns, beams, walls, and slabs, then easily removed and reused for multiple cycles due to their non-stick, durable surface.

Q: What are the benefits of using HDPE Shuttering Sheets over plywood?

A: Compared to plywood, HDPE Shuttering Sheets offer superior durability, excellent impact and weather resistance, termite-proof qualities, and moisture absorption of less than 0.03%. They are reusable over 50 times, formaldehyde-free, lightweight, easy to clean, and maintain dimensional stability in all conditions.

Q: When should I choose straight cut versus customized edge types?

A: Straight cut edges are suitable for standard formwork applications, providing quick installation and alignment. Customized edges are recommended when project specifications require unique shapes or tighter joint tolerances, enhancing adaptability to non-standard construction scenarios.

Q: Where are HDPE Shuttering Sheets typically supplied from?

A: These sheets are manufactured and supplied by leading manufacturers in India, ensuring compliance with IS: 4990 as applicable and delivering quality products to construction sites nationwide or as requested internationally.

Q: What process ensures the chemical resistance of HDPE Shuttering Sheets?

A: HDPE's inherent molecular structure, combined with rigorous manufacturing processes, endows the sheets with high resistance to most acids and alkalis. This makes them particularly suitable for use in chemical-prone or corrosive construction environments.

Q: How can I maintain and store these sheets for maximum reuse?

A: After use, simply clean HDPE Shuttering Sheets with water to remove concrete residues. Store them in a dry, shaded area away from direct sunlight to maintain their integrity. Proper handling ensures they remain in good condition for over 50 reuse cycles.
