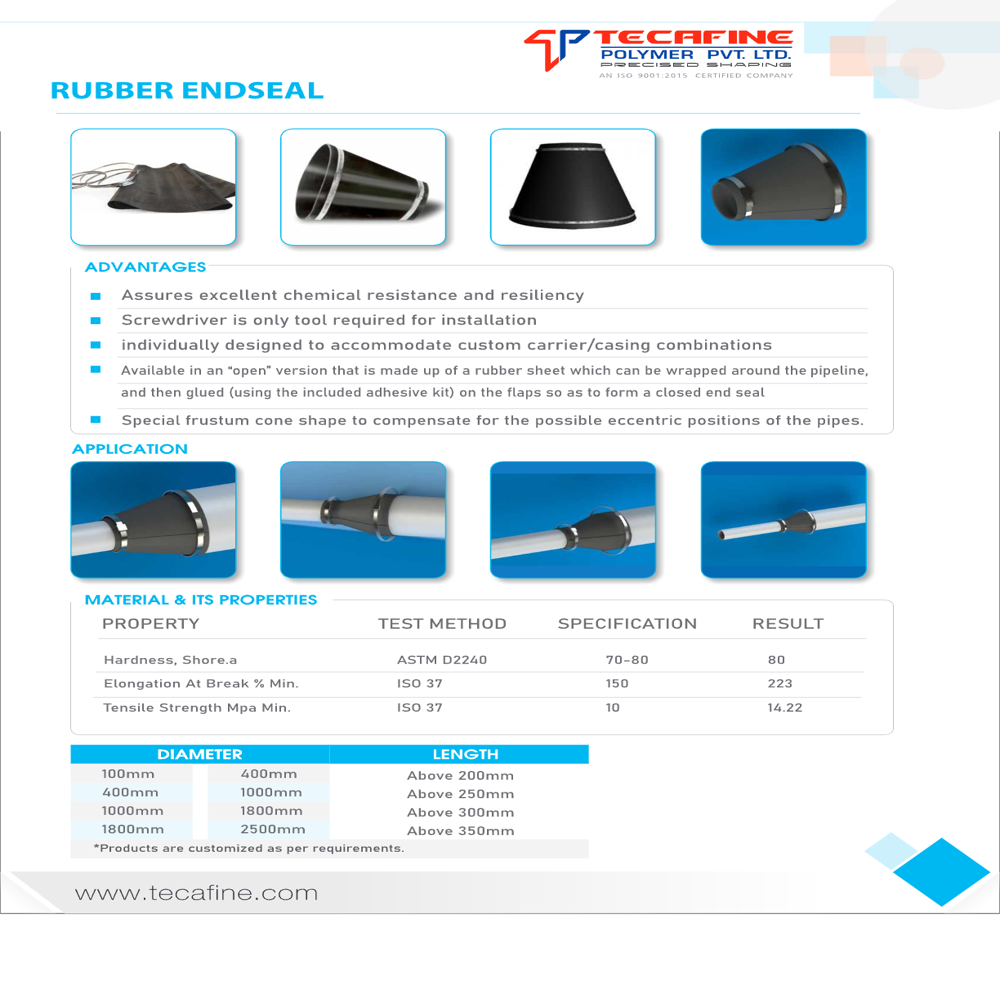

Casing Rubber End Seal

Casing Rubber End Seal Specification

Hardness
60-70 Shore A

Tolerance
0.05 mm

Feature
Weather Resistant, Flexible, Durable

Material
EPDM Rubber / Neoprene

Style
Round Flange End Seal

Shape
Cylindrical with Flanged End

Temperature
-30C to +120C

Application
Casing Pipe Seal for Pipe Jointing

Thickness
5 mm (Standard, Can be Customized)

Outer Diameter
Customized as per requirement

Inner Diameter Range
50 mm to 800 mm

Installation Method
Compression Fit or Mechanical Securing

Color
Black

Ozone Resistance
High

Service Life
Long-lasting

Packaging Type
Carton Box or Polybag

Water Resistance
Excellent

About Casing Rubber End Seal

casing end seal is a means of closing the space between the primary pipe, also known as the carrier pipe, and the larger surrounding pipe which serves to contain it. Without some sort of seal at the end of a horizontal drilling operation, moisture and debris would be able to enter the casing and possibly corrode or damage the carrier pipe.

Casing end seals are used during the final stages of trenchless construction.

Custom designs can be made depending on whether it is a new installation or for retrofitting. Tecafine casing end seal are economic, easy to install and a clean solutio

Reliable Pipe Jointing Solution

The Casing Rubber End Seal offers a dependable solution for protecting and sealing pipe joints. Its versatile design fits a wide range of pipe sizes and supports both compression fit and mechanical securing methods. Crafted for longevity even in challenging outdoor conditions, it is a top choice for infrastructure and utility installations across India.

Superior Material Performance

Produced from high-grade EPDM rubber or neoprene, this seal delivers consistent performance in environments exposed to water, ozone, and varying weather. Its weather-resistant and flexible construction withstands harsh temperature fluctuations, enhancing service life and minimizing maintenance requirements.

FAQ's of Casing Rubber End Seal:

Q: How is the casing rubber end seal installed on pipe joints?

A: The seal can be installed using either a compression fit or mechanical securing method, depending on the project's requirements. Both installation techniques ensure a tight, watertight seal for pipe jointing applications.

Q: What applications are best suited for this end seal?

A: This end seal is ideal for sealing casing pipes in water, sewage, oil, or utility pipelines where protection from leakage and environmental elements is essential.

Q: When should I consider customizing the seal's dimensions?

A: Customization is recommended if your application requires a specific outer diameter, thickness, or tolerance not covered by our standard options. We can tailor dimensions to match unique pipe or installation needs.

Q: Where can these casing rubber end seals be used?

A: They can be used in various environments, including industrial, municipal, and infrastructure projects, particularly where long-lasting, weather-resistant sealing is required.

Q: What benefits does the EPDM or neoprene material offer?

A: Both EPDM and neoprene materials provide excellent resistance to water, ozone, and extreme temperatures, ensuring durability, flexibility, and a long service life, making them suitable for demanding field conditions.

Q: How does the product ensure reliable performance over time?

A: With a robust build, high resistance to weather, and a hardness rating of 60-70 Shore A, the end seal maintains flexibility and sealing efficiency for years, reducing the need for frequent replacements.
